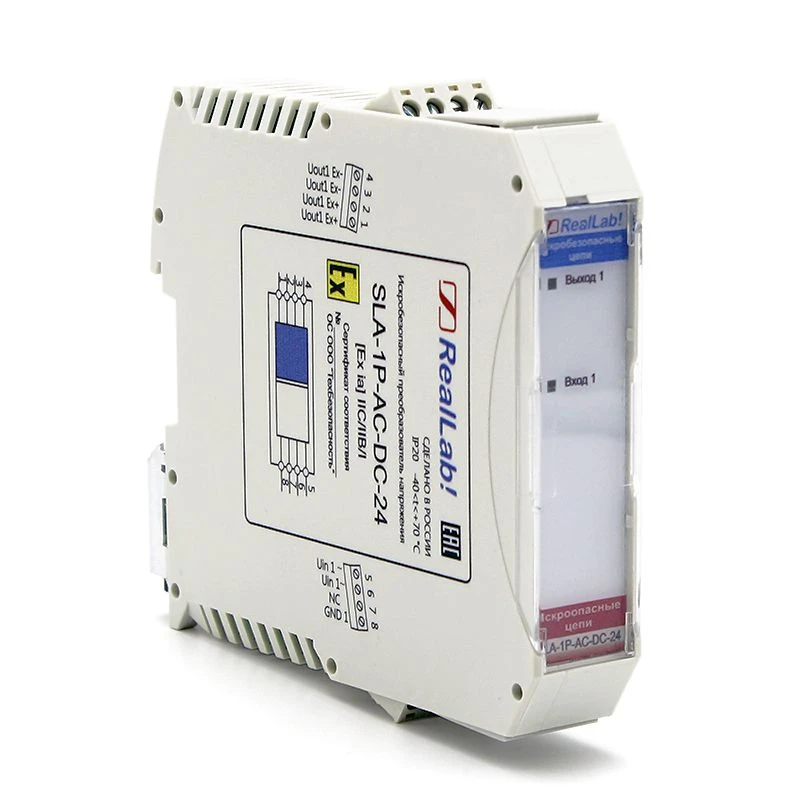

SLA-1P-AC-DC-24 Single-channel intrinsically safe power source

Digital Signal Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Purpose: power supply with intrinsically safe circuits for sensors located in intrinsically hazardous area GOST R 51330.10 (IEC 60079-11-99), GOST 30852.10-2002 (IEC 60079-11-99)Type of explosion protection: intrinsically safe electric circuit of level "ia "Explosion protection marking:[Exia]IExplosive mixtures:according to GOST 30852.11-2002 categories I, IIA, IIB/IIC ExiaIIBPower supply voltage: ~85-250 V, 50 HzPower consumption: 4 WOutput voltage: 24 VLoad current:up to 70 mAGalvanic isolation: 3000 VTemperature:operating temperature range from -40C to +70CShell protection degree: IP20 (GOST 14254-2015)Design: slot designMounting: on DIN-railDimensions (HxWxG): 109x22,5x113 mmWeight: not more than 0,2 kgMaintenance of failure: 100 000 hService life: 20 yearsWarranty: 18 months

Specifications

Overall dimensions (HxWxH):

99.4x22.5x109. mm

Weight, not more:

200 g

Average service life, at least

20 a

Average MTBF:

100000

Guarantee:

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing
