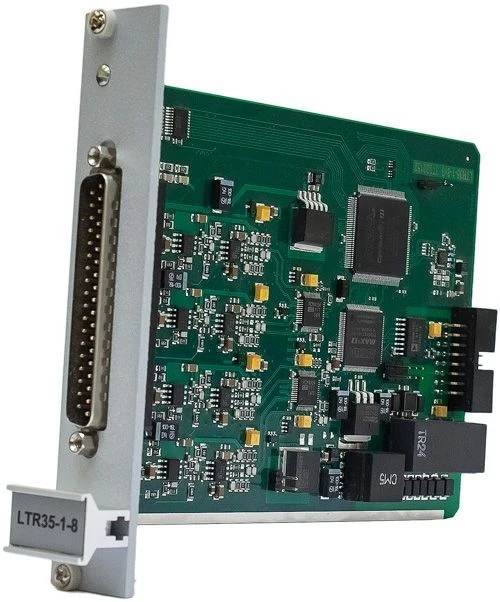

Signal generator module LTR35-1-8

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Signal generator module LTR35-2-8 Signal generator module LTR35-1-4

Description

Signal generator modules LTR35-1-8 are designed for DC and AC voltage reproduction in one or several channels. They are part of LTR measuring installations. LTR35-1-8 is a universal multifunctional module generator-DAC signals synchronous and asynchronous reproduction of DC and AC voltage, digital output and input. LTR35-1-8 allows to realise the function of continuous control without "phase break" of the signal and the function of asynchronous control. The module provides real-time playback of analogue and digital signals and real-time input of user system responses via digital inputs. The LTR35-1-8 multi-channel modules are designed for building data acquisition systems with flexible configurations.

Specifications

Limits of permissible relative error of reproductions of AC frequency of sinusoidal form ±0,005 %

Sine wave AC frequency reproduction range 10 Hz to 16 kHz

Limits of permissible reduced (to the upper limit of the reproduction range) basic error of voltage reproductions pe from ±0.1 %

Reproduction range of AC sinusoidal voltage at the output "1:10" 10^-3 to 0.7 V

Reproduction range of AC sinusoidal voltage at the "1:1" output 10^-3 to 7 V

Limits of permissible reduced (to the upper limit of the reproduction range) basic error of voltage reproductions by ±0,1 %

Reproduction range of DC voltage at output "1:10" -1 to +1 V

Reproduction range of DC voltage at output "1:1" -10 to +10 V

Number of channels 8 pc
