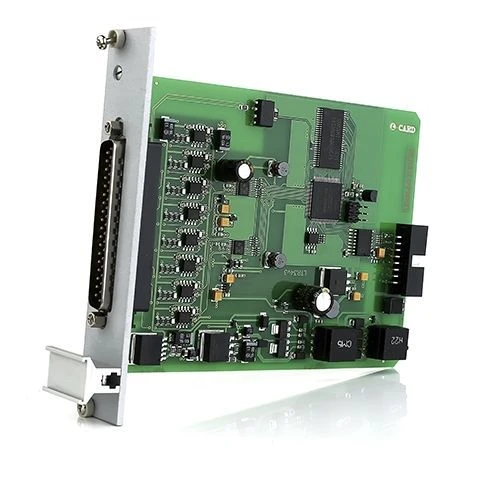

Signal generator module LTR34-8

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Signal generator module LTR34-4

Description

Signal generator modules LTR34-8 are designed for DC and AC voltage reproduction in one or several channels. They are part of LTR measuring installations. LTR34-8 is an eight-channel DAC with 16-bit digit capacity designed for use as a programmable source of DC and AC voltages in the 10 V range. Each channel of the LTR34 has a 1:1 and 1:10 output. The DAC channels are synchronous.

Specifications

Limits of permissible relative error of reproductions of AC frequency of sinusoidal form ±0,005 %

Sine wave AC frequency reproduction range 10 Hz to 16 kHz

Limits of permissible reduced (to the upper limit of the reproduction range) basic error of voltage reproductions pe from ±0.1 %

Reproduction range of AC sinusoidal voltage at the output "1:10" 10^-3 to 0.7 V

Reproduction range of AC sinusoidal voltage at the "1:1" output 10^-3 to 7 V

Limits of permissible reduced (to the upper limit of the reproduction range) basic error of voltage reproductions by ±0,1 %

Reproduction range of DC voltage at output "1:10" -1 to +1 V

Reproduction range of DC voltage at output "1:1" -10 to +10 V

Number of channels 8 pc
