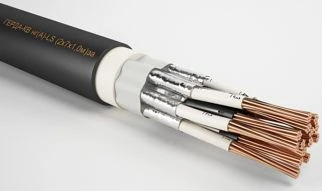

Shielded Twisted Pair Installation Cable with Tinned Copper Conductors, GERDA-KPsBng(A)-HF

Available for Import

Shielded Twisted Pair Installation Cable with Tinned Copper Conductors for Reliable Communication

Installation Cables

Manufacturer: DONKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, grade GERDA-KPsKng(A)-FRHF Installation cable, pair twisted, flame retardant, with copper or copper tinned conductors, mark GERDA-KVKVng(A)-FRLS Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, markGERDA-KVBng(A)-FRLSLTx Installation cable, pair twisted, flame retardant, with copper or copper tinned conductors, mark GERDA-KVng(A)-FRLSLTx Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KPKng(A)-FRHF

Installation cable, pair twisted, fireproof, with copper or copper tinned conductors, mark GERDA-KVBng(A)-FRLS. Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, grade GERDA-KPSBng(A)-FRLS Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPsKng(A)-HF Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KV Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPsng(A)-LS Installation cable, pair twisted, flame retardant, with copper or copper tinned conductors, mark GERDA-KVKKng(A)-FRLSLTx Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KVng(A)-LS Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KVBng(A). Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KPsng(A)-FRHF Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KVB Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPsng(A)-HF Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KVBng(A)-LS Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KVKVng(A)-LSLTx Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPKng(A)-HF Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KPKng(A)-FRHF Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KVKng(A)-FRLS Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KVKKng(A)-LSLTx Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPKng(A)-HF Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KVKng(A)-LS. Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPBng(A)-HF Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KVBng(A)-LSLTx Installation cable, pair twisted, with copper or tinned copper conductors, grade GERDA-KPsKng(A)-LS Installation cable, pair twisted with copper or tinned copper conductors, mark GERDA-KVKVng(A). Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, grade GERDA-KPsKng(A)-FRLS Installation cable, pair twisted, with copper or tinned copper conductors, mark GERDA-KPsBng(A)-LS Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KPsBng(A)-FRHF Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KPBng(A)-FRHF Installation cable, pair twisted, flame retardant, with copper or tinned copper conductors, mark GERDA-KPSng(A)-FRLS

Description

Mounting cables, twisted pair with tinned copper cores, shielded, with the number of pairs up to 44 inclusive, nominal cross-section of cores from 0,35 to 2,5 mm², operating at a voltage of up to 500 V AC 50 or 60 Hz or up to 750 V DC, including places exposed to stray currents.

Specifications

Sheath material

Polymer compositions; halogen-free

Insulation material

crosslinked polyolefin

Fire hazard class

P1b.8.1.2.1.

Gasket type

cables can be laid in premises, channels, tunnels, ground (trenches), including places exposed to stray currents, in explosion hazardous areas of classes 0, 1, 2, 20, 21 22, can be laid in the open air.

Design feature

in banded armor

Minimum cable installation temperature

minus 15 °C

Operating temperature

-50 to +70 °C

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
