Available for Import

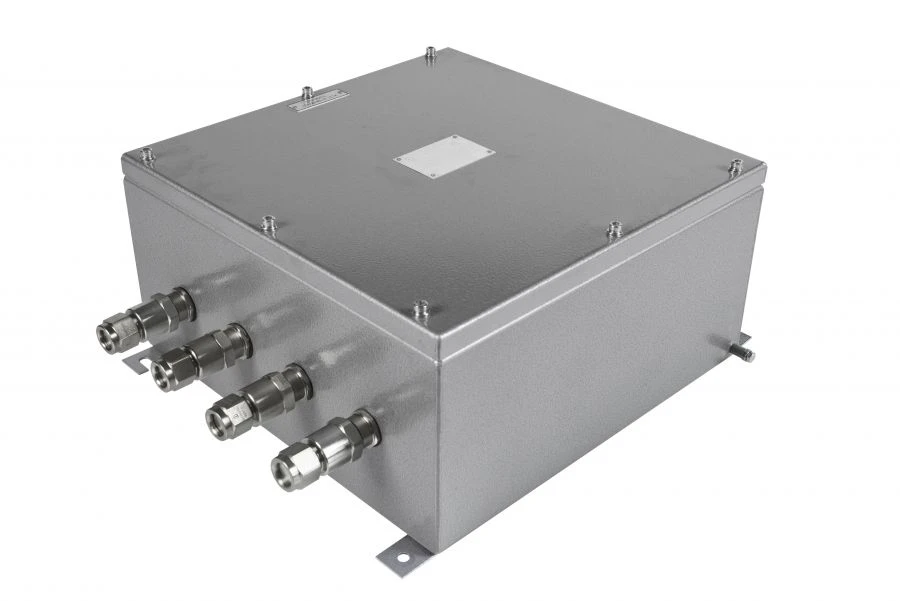

Sheath of SEAS-VEL-9.3
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Description
Shells are designed to accommodate electrical equipment and its components, as well as to protect against contact of operating personnel to electrical parts of the built-in
personnel from touching the electrical parts of the elements of electrical equipment built into the shells.
electrical equipment and to protect these parts from environmental and mechanical influences. It is allowed to make openings for installation of cable glands, inspection windows and possible installation of heating system in the enclosures.
personnel from touching the electrical parts of the elements of electrical equipment built into the shells.
electrical equipment and to protect these parts from environmental and mechanical influences. It is allowed to make openings for installation of cable glands, inspection windows and possible installation of heating system in the enclosures.
Specifications
Climatic version
OM1;B1.5
Sheath material
corrosion-resistant steel
Overall dimensions (HxWxH)
392x392x311 mm
Maximum viewing window size
200x160 mm
Explosion protection marking
Ex e mb IIC Gb U;Ex e II Gb U;Ex e I Gc U
Degree of protection against external influences
IP66
Weight
24 kg
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
