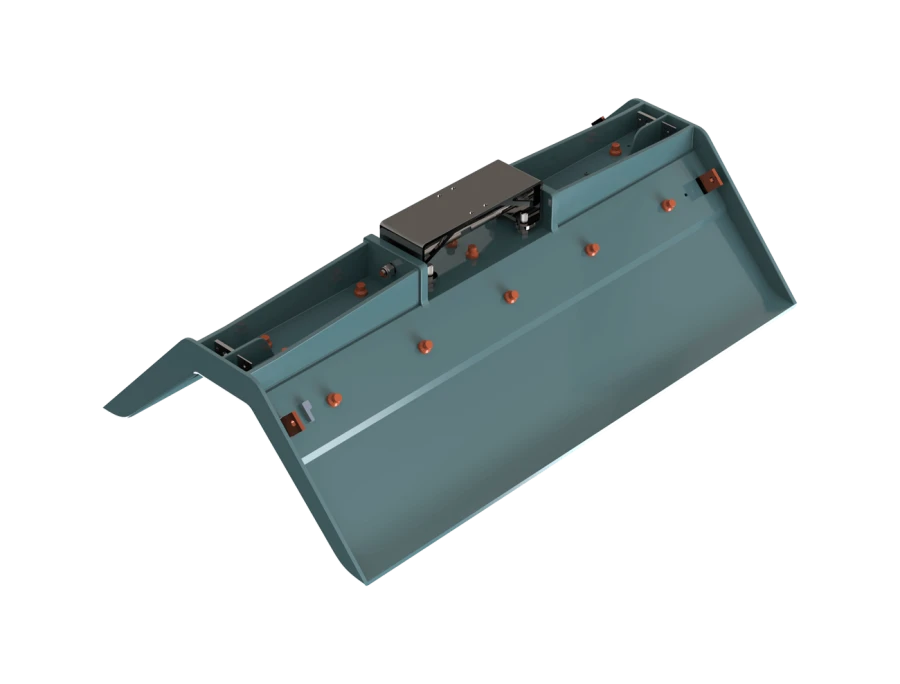

Contact device SETR.104.00.00.000 "ASTRA" (Receiving system "ASTRA")
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The contact device SETR.104.00.00.000 "ASTRA" (Receiving system "ASTRA") is designed for docking the electric bus current collector with the charging station. It performs the following key functions:Compensation of vehicle positioning inaccuracy (electric bus) due to standardised shape (SAE J3105-2) catches the moving contact head of the current charger (electric bus pantograph).Transmission of current from the charging station to the traction batteries of the vehicle (electric bus). Provides information exchange between the charging station and the vehicle (electric bus). Has a heating system of contact tyres.Maximum working voltage - 1000 V.Maximum working current - 600 A.Working voltage of the heating system - 230 V.Maximum current of the heating system - 15 A.Maximum allowable pressure of the current collector on the Dome - 350 N.Length - 1300 mm. Width - 768 mm. Height - 389 mm. Weight - approx. 45kg. Standard - SAE J3105-2, EN50696:21.
Specifications
Contact tyre heating system
Has a system of heating of contact busbars. Operating voltage of the heating system is 23010%. Maximum current of the heating system - 15 A
Maximum operating current
600 A
Compensation of vehicle (electric bus) positioning inaccuracy.
Compensation of vehicle positioning inaccuracy (electric bus) due to standardised shape (SAE J3105-2) catches the moving contact head of the current charger (electric bus pantograph).
Current transfer
Transmission of current from the charging station to the traction batteries of the vehicle (electric bus).
Maximum operating voltage
1000 V
