Available for Import

Set of blades for GTE-170.1 turbine (including: guide blades of 1,2,3,4 stages, working blades of 1,2,3,4 stages) for

Gas Turbine Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

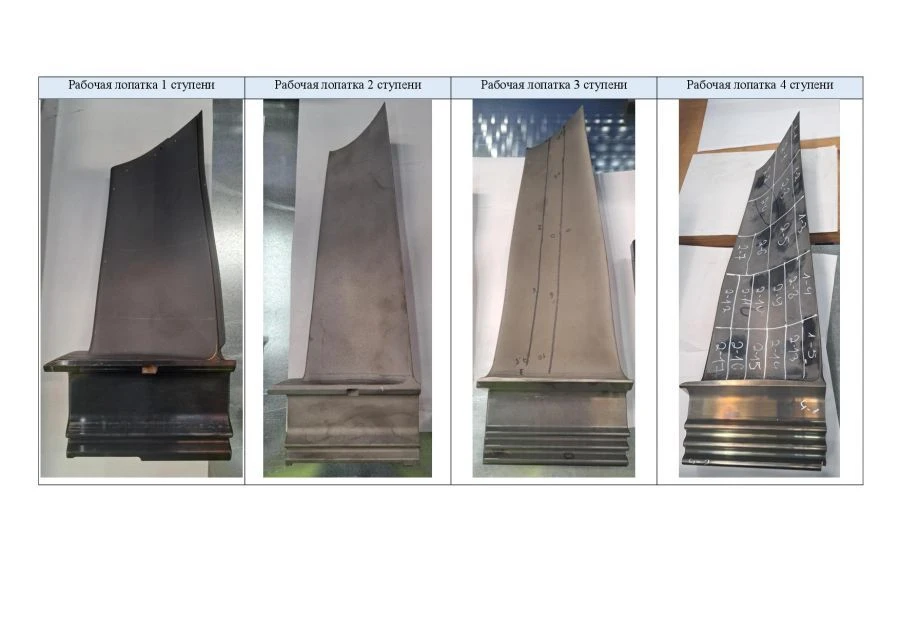

Turbine blade set GTE-170.1 is designed for staging and operation as part of gas turbine units GTE-170. Reliability, resource and service life of the set of blades as part of the turbine provide the requirements of technical specifications for manufacturing of gas turbine GTE-170 TU 28.11.23-001-05030856-2020. The energy intensity of the blade set characterises only the amount of fuel and energy resources required during production and is included in the cost of the set. A set of blades has a possibility of material recycling (remelting), which allows to use one material (metal) repeatedly. Recycling is at the discretion of the gas turbine operator. The set of turbine blades 62.495-0000.001 includes 4 rows of guide (stator) blades and 4 rows of working (rotor) blades according to Table 2.

Technical Specifications

Gas temperature before 1st stage guide vane	1171.25 °C
Total gas pressure upstream of the 1 stage guide vane	1109610
Gas temperature in front of the 1st stage guide vane	1112.34 °C
Total gas pressure upstream of 1st stage guide vane	1056970
Gas temperature before 2nd stage guide vane	952.83 °C
Total gas pressure upstream of 2nd stage guide vane	705045
Gas temperature in front of 2nd stage guide vane 3229593:Gas temperature in front of 2nd stage guide vane	932.57 °C
Total gas pressure upstream of the 2nd stage working vane	566194
Gas temperature before 3rd stage guide vane	811.15 °C
Total gas pressure upstream of the 3 stage guide vane	417063
Gas temperature in front of the 3rd stage working blade 3229597:Gas temperature in front of the 3rd stage working blade	801.03 °C
Total gas pressure upstream of the 3-stage impeller	341622
Gas temperature in front of the guide vane of stage 4	678.78 °C
Total gas pressure before 4th stage guide vane	255232
Gas temperature in front of the 4th stage impeller	675.54 °C
Total gas pressure upstream of the 4 stage impeller	197126
Temperature of gas behind the working blade of the 4th stage	536.93 °C
Total gas pressure behind the 4-stage impeller	100777

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
