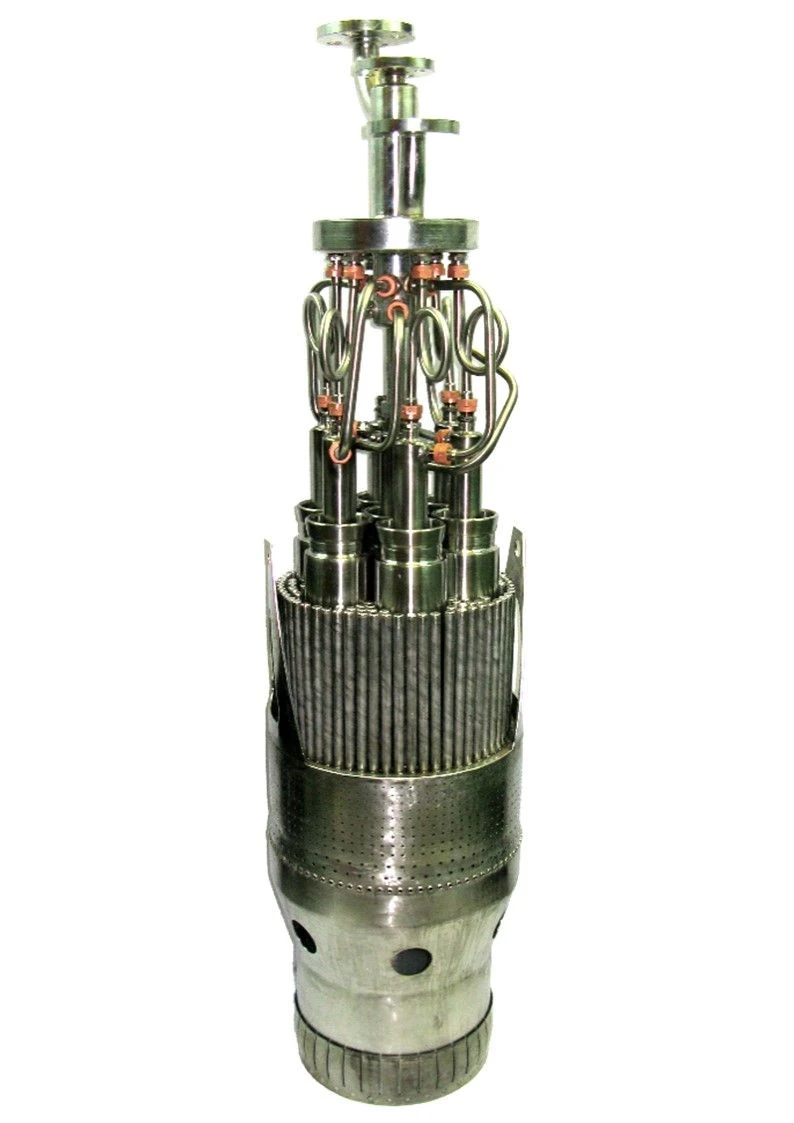

Combustion chamber PST GTC-25IR PST6.387500.000

Combustion chamber PST GTC-25IR, designed for installation on gas pumping units GTC-25IR, according to the principle of organisation of the working process is a single-zone multi-module combustion chamber with preliminary preparation of "poor" fuel-air mixture and two-channel fuel supply system, which ensures multi-mode operation of the combustion chamber and low emission levels of nitrogen oxides (NOx) and carbon monoxide (CO) at the main operating modes of the GTK-25IR GPA. MEX PST GTC-25IR was recommended for use in PJSC Gazprom after acceptance testing in 2014. It is the first domestic MEX for 25 MW GTE.
