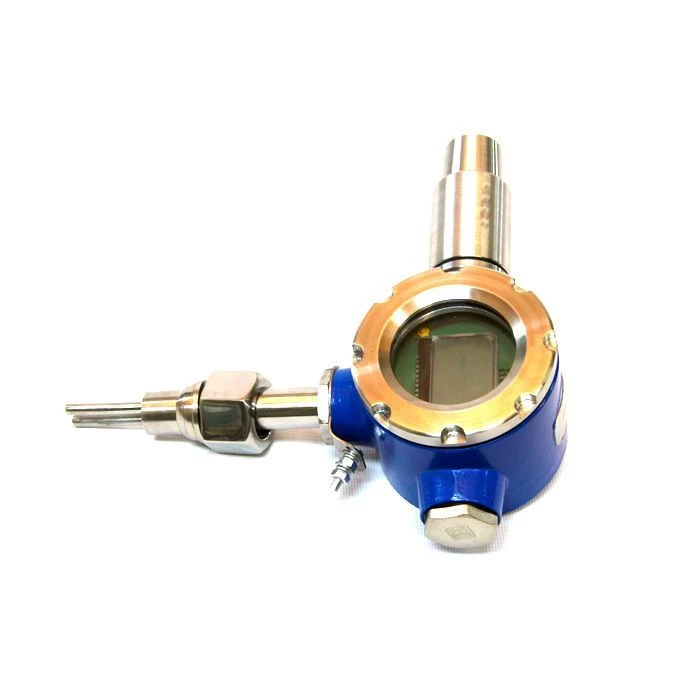

Sensor of volumetric gas content in liquid SZHU-1-OH-V

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The device can be used as a phase state indicator (PSI). When installed in steam boilers, it is possible to determine the beginning of the boiling process and observe its intensity. Also, there is a possibility of installation on the equipment for drilling wells in the mining industry for signalling the presence of free gas in the drilling fluid.

Specifications

Service life B1/B8 2100/900 MHz a

Power supply voltage 24 V

Degree of protection of the outer shell IP67

Explosion protection Without explosion protection; 1 Ex d llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)

Ambient air temperature range -55...75 °C

Model Sensor of volumetric gas content in liquid SZHU-1-OH

Operating medium temperature -196...400 °C

Working medium pressure 0...35 MPa

Length of the measured part 100...4000 mm

Stand height From 60 mm

Sealing unit Connector, male thread; Coupling nut, female thread; Flange connection; Special version by prior agreement

Location of the device on the object Horizontal tapping into vertical pipework is recommended, the sensing element should be positioned in the centre of the flow so that the fluid flow passes between the horns of the fork

Current consumption Not more than 50 mA

Averaging time 0.1...10

Types of output signals 4/20 mA; RS-485

Material of the signaling device in contact with the working medium Stainless steel 12?18?10? (or analogue)

Housing material Aluminium alloy (standard); Stainless steel 12X18H10T

Indication on the instrument housing LED indication; LCD display

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
