Sensor of meteorological parameters DMP ISAT.416311.002

Weather and Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

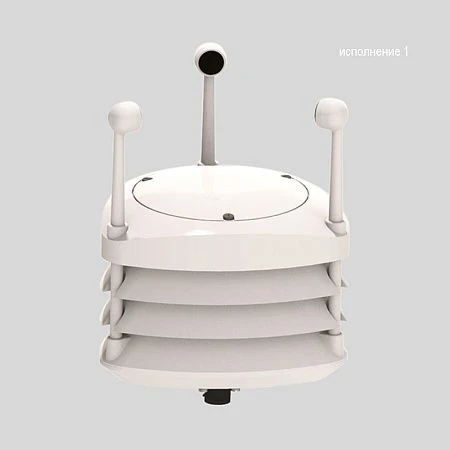

The sensor of meteorological parameters is designed for measurement of temperature and relative humidity, atmospheric pressure, wind speed and direction in the surface layers of the atmosphere, data processing and transmission to the consumer. The design of the sensor allows to use it practically in any sphere, and heating of sensitive elements provides operability even at low temperatures. Advantages: compactness and light weight; accurate and traceable measurements; information transfer via RS-485 interface; easy installation; heating of sensitive elements.

Specifications

Weight, not more 0.8 kg

Degree of protection IP66

Power consumption, max. 30 W

DC supply voltage 9.5...36 V

Limits of permissible absolute error of airflow direction measurements -3...3

Measuring range of air flow direction 0...360

Limits of permissible relative error of air velocity measurements in the range from 10.0 to 60.0 m/s -5...5 %

Absolute error limits of air velocity measurements in the range from 0.5 to 10.0 m/s inclusive, m/s -0.5...0.5

Limits of permissible absolute error of air velocity measurements in the range from 0.2 to 0.5 m/s inclusive, m/s -(0.1+0.5V)-(0.1+0.5V)

Measurement range of air velocity 0.2...60

Limits of permissible absolute error of atmospheric pressure measurements, hPa -0.5...0.5

Measuring range of atmospheric pressure, hPa 600...1100

Limits of permissible absolute error of relative humidity measurements in the range from 90 to 100 % -5...5 %

Limits of permissible absolute error of relative humidity measurements in the range from 5 to 90 % inclusive -2...2 %

Measuring range of relative humidity 5...100 %

Limits of permissible absolute error of air temperature measurements -0.3...0.3 °C

Measuring range of air temperature -50...60 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
