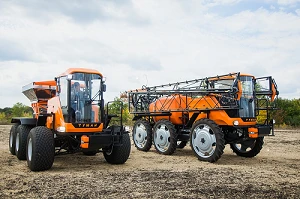

Self-propelled sprayer-spreader TUMAN-3, complete with replaceable technological equipment (boom sprayer T

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Stang sprayer (7 sections) TUMAN-3, low pressure tyres, narrow wheels, navigation system, hydraulic thruster.
Purpose: for effective work on application of plant protection agents (herbicide, insecticide, fungicide treatment) in the shortest agrotechnical terms due to high speed of processing.
The undeniable advantage of the machines over their analogues is their multifunctionality, which is achieved by the modular design of the machine. Easy to maintain and reliable construction, light welded truss frame made of thin-walled steel profiles. Capacity 2500 litres. All loaded frame elements are reinforced, improved weight distribution of the machine, pressure on the soil up to 0.4 kg/cm2 , work performance in the shortest agrotechnical terms, extended area of application (due to interchangeable equipment), one machine replaces 3-4 trailed sprayers, does not require a free tractor, high productivity (at chemical protection of plants up to 80 ha/h), availability of satellite navigation system (allows to work day and night), performs agrotechnical works in difficult weather conditions, high quality of treatment, fast refuelling with chemical preparations, low fuel consumption, low cost allows to pay off the machine for 2 seasons.

Technical Specifications

Type of product according to PP RF 616 Mechanical devices for spreading or atomizing liquids or powders, used in agriculture or horticulture
Wheel arrangement 6?4
Engine Kubota V3800-DI-TE
Rated power 71 kW
Transport speed 40
Replacement process equipment (1) Boom sprayer TUMAN-3
Machine operating weight, not more (1) 3800 kg
Tank capacity (1) 2500±5% l
Working width (depending on particle size distribution of the fertiliser and ambient conditions)(1) 28 m
Application rate (1) 15...450
Wheel types (1) 19-21 LT Low pressure tires W8-42 Narrow wheels
Overall dimensions in transport position (LxWxH, mm) on 19-21 LT low pressure tires (1) 7100x2900x3000
Ground clearance on 19-21 LT low-pressure tires (1) 370 mm
Track on 19-21 LT low-pressure tires (1) 2230 mm
Operating speed on 19-21 LT low pressure tires (1) 10...35
Overall dimensions in transport position (DxWxH, mm) on W8-42 narrow wheels (1) 7100x2450x3200
Ground clearance on W8-42 narrow wheels (1) 500 mm
Track on W8-42 narrow wheels (1) 2000 mm
Operating speed on W8-42 narrow wheels (1) 10...20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
