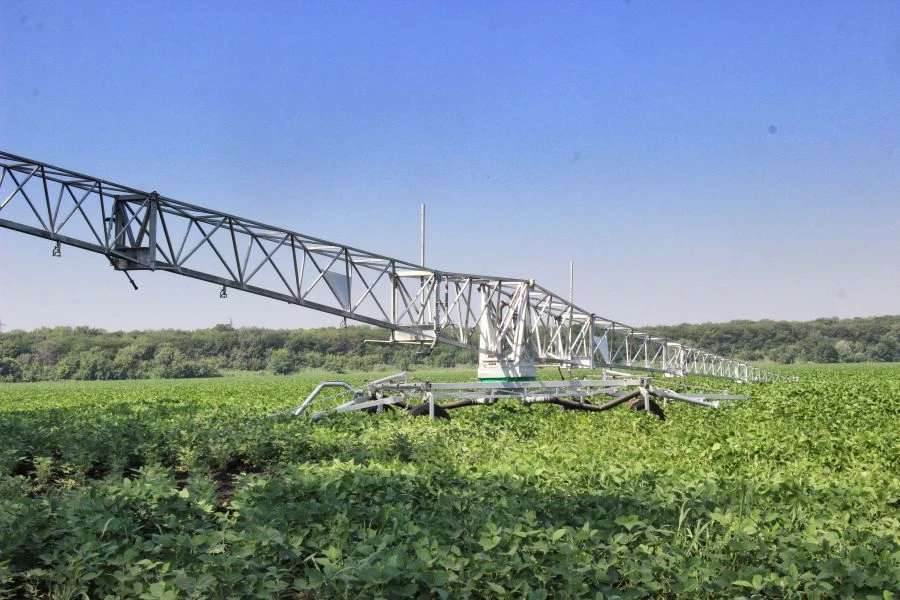

Trailed console KD 77/98

Consol trailed KD 77/98 on a four-wheeled chassis has a boom with a structural length of 77 metres. The design - folding spatial truss with pivoting and pendulum mechanism - is considered to be the most efficient, robust, reliable and versatile means for irrigation of small-seeded vegetable crops.

Technical performance:
- The width of the irrigation band is 77-98 metres.
- Water flow rate 22-72 m3/h
- Working pressure 1-2 atm
- Number of nozzles 26 pcs.
- Track width 1.5-3.2 m (adjustable)

The KD 77/98 trailed sprinkler console is easy to use and can be folded down to the transport position with the help of only one person. The console can work with drum type sprinklers of any size.

* Folding space truss
* Pendulum mechanism
* Track width can be adjusted to the size of the row spacing
* Pipe laying in the track
* Trolley with 4-wheel steering mechanism
