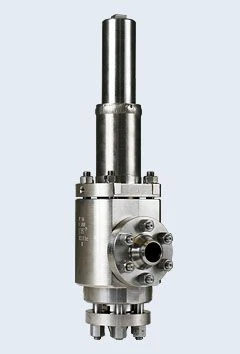

Safety Angle Valve TD53085 DN 80/100 for Preventing Overpressure in Nuclear Systems

Nuclear Power Valves

Manufacturer:Znamia Truda OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Safety angle valve TD53085 DN 50/80 Safety angle valve TD53085 DN 15/25

Description

It is used for installation as safety devices in normal operation systems and in safety systems of nuclear power plants (NPP) on vessels, pipelines and apparatuses in order to prevent pressure rise in them in excess of permissible pressure.

Supplied domestically, can be supplied for export, including tropical climates..

Specifications

Operating medium

Gaseous: nitrogen, air, vapour-air mixture; liquid: process water, industrial water, active distillate, solutions of con, nh3, hno3, naoh, boron solution, trap water, regenerated boric acid, heat-carrier of i circuit.

Nominal diameter, DN

80/100

Pressure, Rp

pp 1.6 mpa (16 kgf/cm²)

Operating medium temperature

up to 180 °C

Pipeline connection

flanged with welded mating flanges

Housing material

08CR18NI10T

Stem seal

bellows

Valve control

automatic with additional manual detonation

Setting position

upright, hood up

Media flow direction

under the spool

Flow coefficient, not less

dn 15/25 - 0,35 (by water), 0,6 (by air);dn 50/80 - 0,3 (by water), 0,5 (by air);dn 80/100 - 0,6 (by water).

Permissible leakage in the gate, cm3/min

dn 15 - 1 (water), 8.0 (air)dn 50 - 0.6 (water), 10.0 (air); dn 80 - 0.35 (water)

Spring setting pressure limits Rn, MPa (kgf/cm2)

0.15 to 1.5 (1.5 to 15)

Classification designation of the valve

2viiiv, 2viiiis, 3ciiiis by np-068-05

Seismic resistance category

i by np-031-01

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
