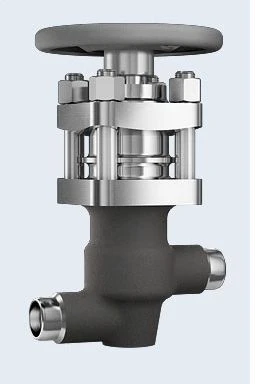

Safety Bellows Shut-off Valve TD26161-010 for Nuclear Applications Available for Import

Safety Bellows Shut-off Valve TD26161-010 for Secure Nuclear Systems

Nuclear Power Valves
Manufacturer: Znamia Truda OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Shut-off bellows valve TD26161-032 (all versions) Shut-off bellows valve TD26161-020 (all versions) Shut-off bellows valve TD26161-150 (all versions) Shut-off bellows valve TD26161-065 (all versions) Shut-off bellows valve TD26161-015 (all versions)

Description

Applied for installation as shut-off devices on pipelines of nuclear power plants in systems important for safety, including safety systems.

Specifications

Airtightness class
in accordance with GOST 9544
Operating medium
stainless steel valves - all media according to np-068-05, except slurry; carbon steel valves - make-up water, oil, nitrogen, steam, steam generator feed water, feed water, condensate, radioactive gases
Pressure, Rp
1...1.6 MPa
Nominal diameter, DN
10 mm
Classification designation of the valve
2biiv, 2biiic, 3ciiic by np-068-05
Seismic resistance category
i by np-031-01
Housing material
08x18n10t, steel 20
Pipeline connection
Welded
Operating medium temperature
200 °C
