RTPB (Block transformer distribution substation)

Electric Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

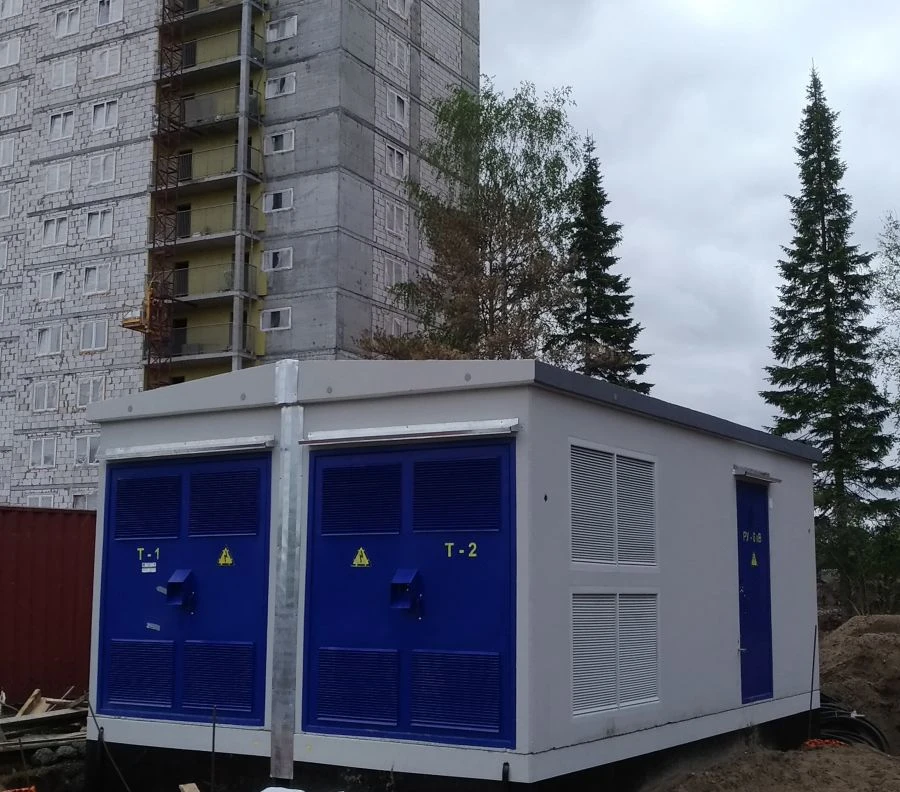

Distributing transformer substation block (RTPB) with capacity up to 2500kVA is designed to receive, convert and distribute electricity in housing and communal, industrial and agricultural energy systems, in auxiliary systems of thermal power plants, at district substations of electrical networks, at the main step-down substations of industrial and civil facilities with voltage 6(10,20,35)/0,4kV. KTPB consists of volumetric above-ground and underground blocks. Each block is a monolithic reinforced concrete structure with possible overall dimensions: width 2300-3000 mm, length 3500-7500 mm. Concrete grade M400 (B30), thickness of walls, floor -100 mm. It is possible to complete KTPB with various electrical equipment according to the requirements of the technical specification.

Technical Specifications

Height of elevated unit	2650...3150 mm
Height of cable basement	900...2900 mm
Length of cable basement/underground unit	3500...7500 mm
Climatic designs and placement categories	?1
Seismic resistance	9 points
Degree of protection of the shell	IP 34
Width of cable basement/underground unit	2300...3000 mm
Concrete grade	M400 (V30)
Capacity, up to	2500
Voltage	6...35 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
