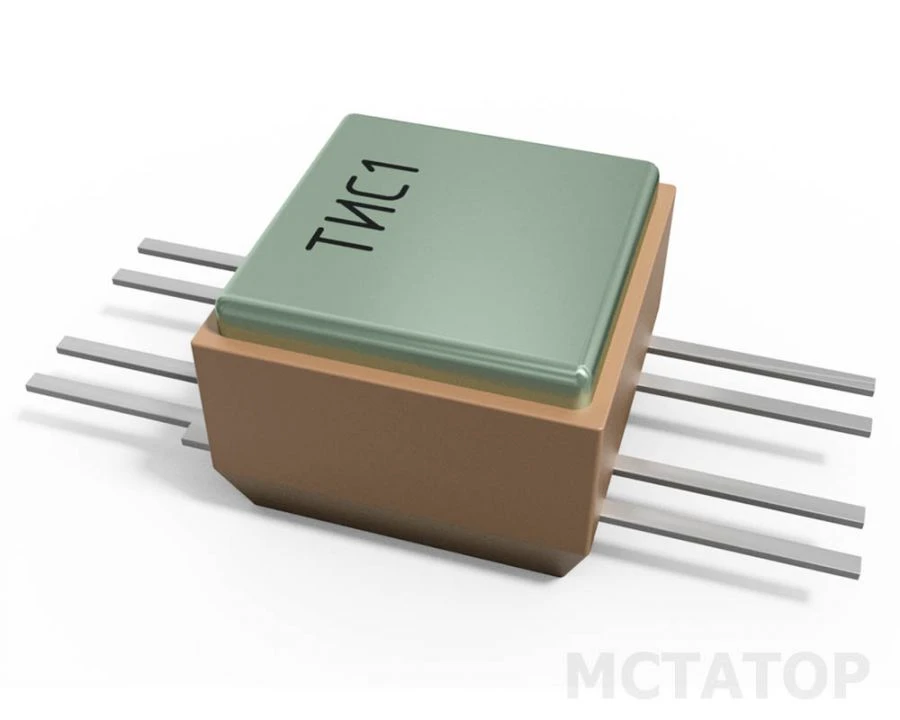

Pulse matching transformers of TIS1 type

Electric Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Pulse matching transformers of TIS1 type are designed for application in data and information transmission systems based on standard interfaces of digital networks according to GOST R 52070 (GOST 26765.52, MIL-STD-1553B) in communication and control equipment. Quality category "VP".

Technical Specifications

Insulation resistance (voltage 100 V), not less than	500 (×10^6) ohm
Electrical insulation strength: DC voltage	250 V
Scattering inductance of I and II windings, not more than	8 (×10^-6)
In-phase signal attenuation coefficient, not less than	45
Linear winding resistance (impedance) at F=75 kHz and F=1 MHz, not less	4 (×10^3) ohm
Symmetry of generator windings	2 %
Ratio of number of turns of TIS1-5 transformers	Findings 1-4:8-5 - 1.19 : 1; Findings 1-4:7-6 - 1.65 : 1
Ratio of number of turns of TIS1-4 transformers	Findings 1-4:8-5 - 1 : 3.73; Findings 1-4:7-6 - 1 : 2.67
Pulse peak decay at the output	20 %
Ratio of number of turns of TIS1-3 transformers	Pins 1-4:8-5 - 1 : 2.55; Pins 1-4:7-6 - 1 : 1.82
Ratio of number of turns of TIS1-2 transformers	Findings 1-4:8-5 - 1.12 : 1; Findings 1-4:7-6 - 1.56 : 1
Ratio of number of turns of TIS1-1 transformers	Pins 1-4:8-5 - 1.41 : 1; Pins 1-4:7-6 - 2.00 : 1
Operating temperature range	-60...85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
