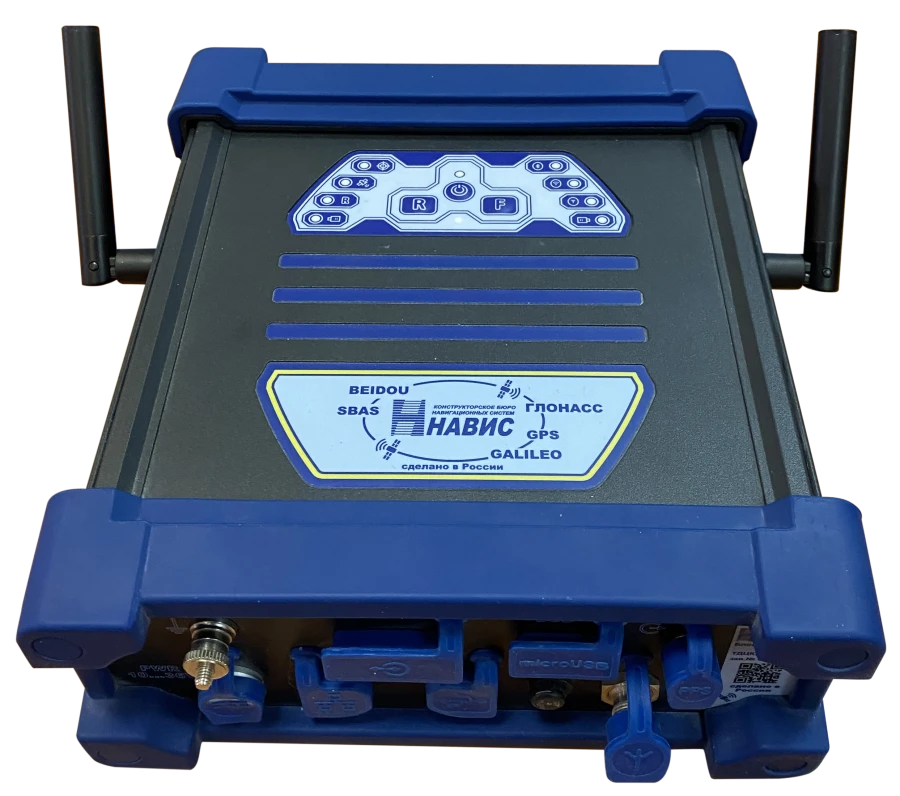

RS equipment

Radio Navigation Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The RS equipment is designed to solve geodetic tasks, tasks of high-precision positioning (determination of consumer coordinates in autonomous and relative modes, in real-time modes and accumulation of data in the internal flash memory with subsequent unloading via interface and post-processing) using GLONASS, GPS, GALILEO, BeiDou GNSS signals; creation of geodetic networks, networks of high-precision navigation, formation and issuance of corrective information.

Specifications

Received signals L1OF, L1OC GLONASS; L2OF, L2OC GLONASS; L3OC GLONASS; L1 C/A code GPS; L2 CL/CM codes GPS; L5 GPS; L1C GPS; E1 GALILEO; E5A GALILEO; E5B GALILEO; B1, B1C BeiDou; B2, B2a BeiDou; SBAS in L1, L5 GPS frequency bands; SDCM in L1 GLONASS frequency band.

Number of processing channels 432

Location modes Autonomous; differential (SBAS, RTCM SC104); RTK mode; PPP mode.

Offline positioning accuracy, in plan (RMS) 2 m

Positioning accuracy in differential code mode (RTCM), in plan (RMS) 6 m

Positioning accuracy in differential code mode (SBAS), in plan (RMS) 8 m

Location accuracy in differential phase mode (static), in plan (RMS) 5mm+1mm/km mm

Positioning accuracy in differential phase mode (RTK), in plan (RMS) 10mm+1mm/km mm

Interfaces USB 2.0 Host (USB-A), speed up to 480 Mbps; USB 2.0 Device (micro USB), speed up to 480 Mbps; Ethernet, speed 10/100 Mbps; RS-232 speed up to 921600 bps; Wi-Fi IEEE 802.11 a/b/g/n, 2.4/5 GHz, speed up to 100 Mbps; Bluetooth 4.2; 2G/3G/4G mods

Exchange protocols NMEA-0183 (IEC 1162), BINR2, RTCM SC-104 v2.3, v3.2, NTRIP, HTTPS, FTP and SSH.

Time stamp generation error (RMS), not more than ns 20

Operating temperature range -40...60 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
