RS-485 digital serial channels interface device. 3 RAW/ModBUS channels with individual galvanic isolation (M

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

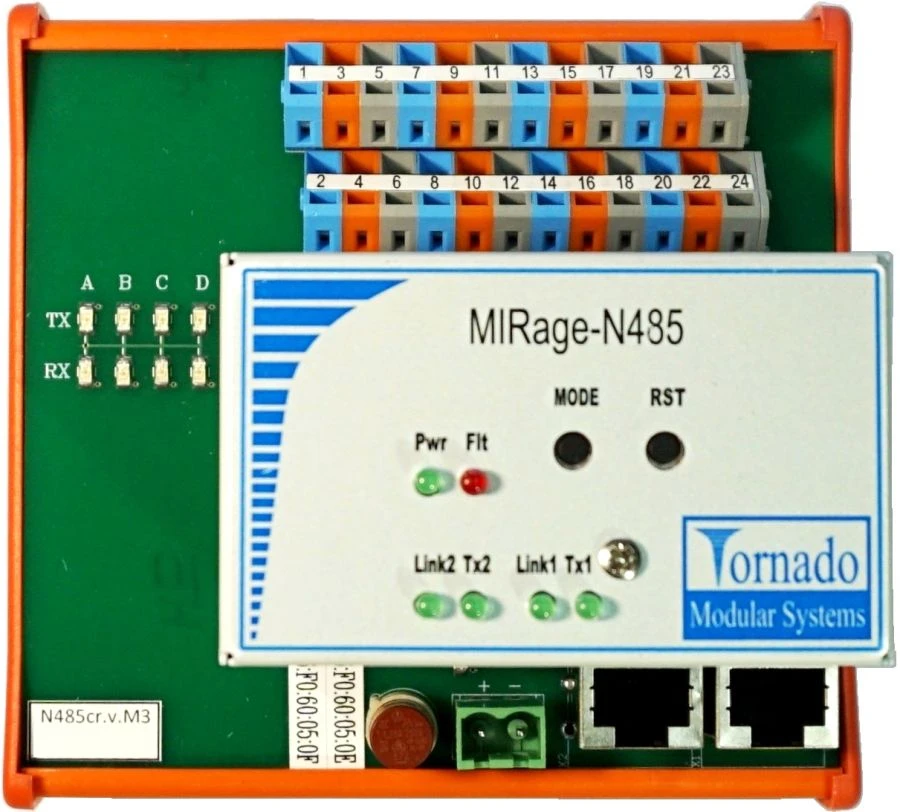

The MIRage-N485 devices are designed to connect industrial devices and instruments with RS-485 interface to Ethernet networks. The device has two Ethernet 10/100 interfaces with twisted pair connection and three channels of RS-485 interface. The devices operate in two modes: transparent (RAW) mode and ModBus packet transmission mode. The speed and format of serial data transmission via RS-485 is configurable by software. Each channel has galvanic isolation and short-circuit protection. MIRage-N485 devices are designed for creation of automated process control systems (APCS) in various industries.

Specifications

Modes of operation Transparent (RAW), ModBus

Number of RS-485 channels 3 pc

Request response time at 100 Mbit network speed, no more than 2

Mechanical design DIN rail mounting

Interface type Ethernet 10/100BaseTX - 2 channels

Data transfer rate 100

Data exchange protocol Modbus TCP/UDP slave

Galvanic insulation Point-to-point

Overall dimensions 114x108x111 mm

Weight, not more 450 g

Wago terminal block, conductor cross-section up to 2.5 mm2

Operating temperature range -25...70 °C

External supply voltage (+/- 15%) 24 V

Consumption current, max. 75 mA (with RS-485 open)

Maximum buffer size per RS-485 channel 365

Terminal load, internal (+/- 10%) 100 ohm

Current protection 150 mA

RS-485 baud rate 300...115200

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
