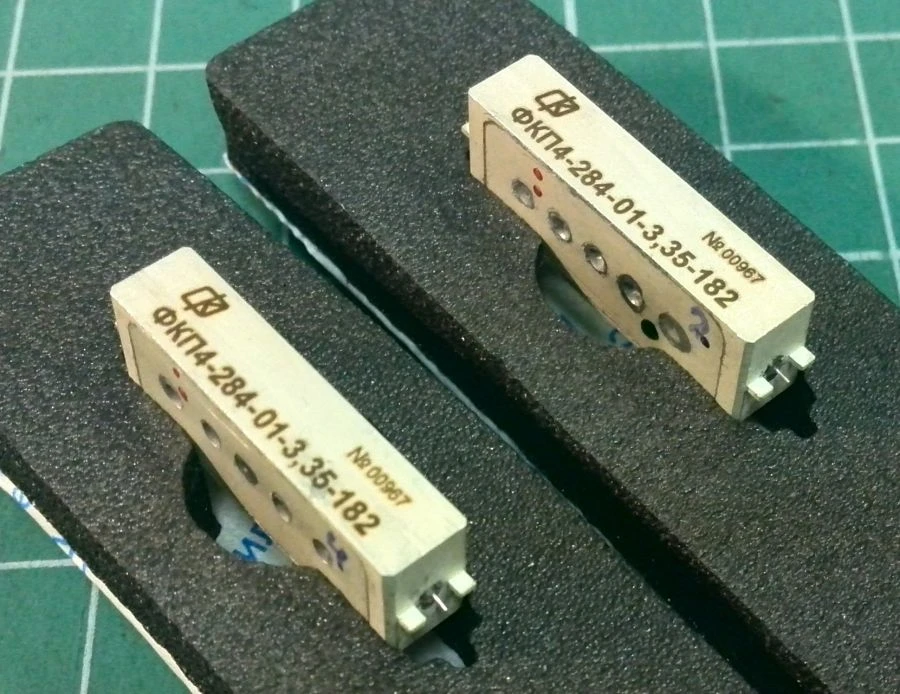

RF Bandpass Filter FKP4-284-01-3.35-182 for High Reliability and Low Losses

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 5th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-size parameters of the filter. The product is designed for operation in the UHF range and provides a bandwidth of 182 MHz relative to the centre frequency of 3350 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3270 to 3430 MHz

1.4

Guaranteed attenuation (upper band 3727 to 4100 MHz)

Guaranteed attenuation (lower band 3085 to 3140 MHz)

Maximum insertion attenuation in the operating frequency range

1.5

30 dB level bandwidth

350...370

Bandwidth at 1 dB level

177...192

Center frequency

3350
