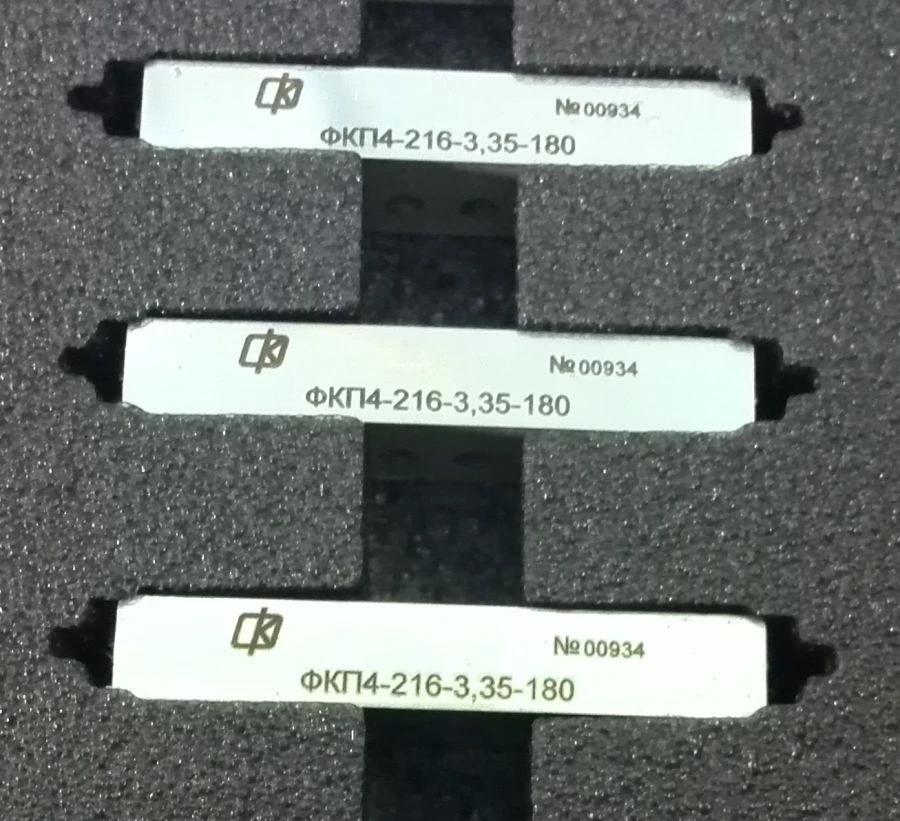

High-Pass Ceramic RF Filter FKP4-216-3.35-180 for Reliable Signal Processing

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 6th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-size parameters of the filter. The product is designed for operation in the UHF range and provides a bandwidth of 180 MHz relative to the centre frequency of 3350 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3260 to 3440 MHz

1.4

Guaranteed attenuation (upper band 3580 to 3700 MHz)

Guaranteed attenuation (lower band 10 to 3110 MHz)

Maximum insertion attenuation at center frequency

1.6

30 dB level bandwidth

285...315

Bandwidth at 1 dB level

170...182

Center frequency

3349
