Available for Import

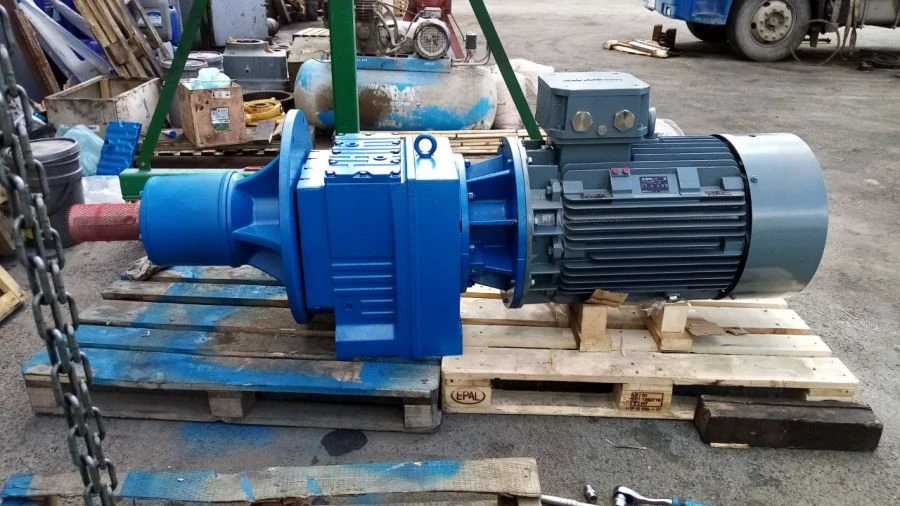

REVTS.303216.001 Cylindrical motor-reducer
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The helical gearmotor is a special type of helical gearmotor with an extended output shaft bearing housing. It is specially designed for use in mixing applications and can withstand high external radial and axial loads and bending moments. The main construction materials of the gearmotor are: ??20 for housing parts and alloy steel 20???? for gears and steel 45 for shafts.
Specifications
Output torque (nominal - maximum), not less than
4500...18000
Mounting design
Vertical, output shaft downwards
Temperature rise limit CLB
80 °C
Level and type of explosion protection of electric motor
Ex d IIC
Protection class of the electric motor
IP55
Power supply parameters
400 V
Type of gear joint
Cylindrical
Number of gearbox steps
2 pc
Motor shaft speed
1500
Motor power
Flat grinder, Specialised grinder kW
Output shaft speed
186
Height
810.4 mm
Width
660 mm
Length
2231 mm
Weight, packed, not more
2200 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
