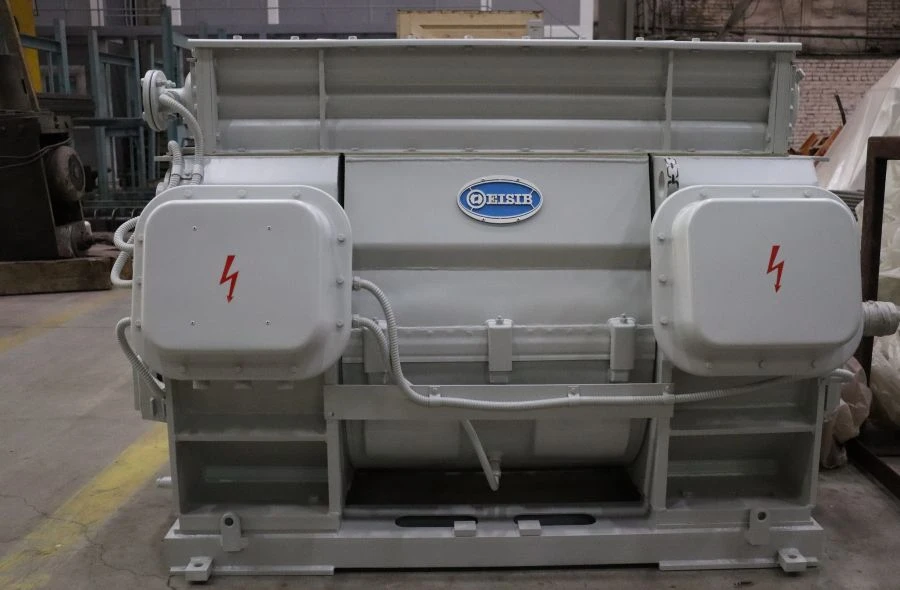

Asynchronous electric motor 4AZM-3150/10000

The three-phase asynchronous motor with squirrel cage rotor 4AZM-3150/10000 UHL4 is designed for drive of high-speed mechanisms of auxiliary needs of thermal power plants, stationary pumps, compressors, blowers. Structural design IM1001 GOST2479-79. The motor has shielded sliding bearings with forced lubrication system. Motor stator winding insulation 4AZM-3150/10000UHL4 is made on thermosetting binders of heat resistance class F GOST 8865-93 with temperature use at the level of class B. Cooling method IC7A1W7 GOST R IEC 60034-6-2012. Motor 4AZM-3150/10000 UHL is completed with current transformers built into each phase, which serve for differential protection. The motor is designed for operation in the environment, the nominal value of climatic factors of which corresponds to the macroclimatic region with moderately cold climate of placement category 4 according to GOST 15150-69.
