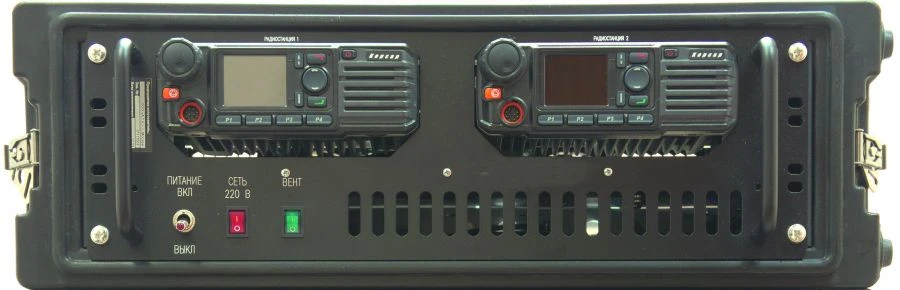

Repeater "KORSAR KRR-785 D2" (146 - 174 MHz)

Radio Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

KORSAR KRR-785 D2 repeater (400 - 470 MHz)

Description

Repeater "KORSAR KRR-785 D2" (146 - 174 MHz) is designed to work as a trace repeater in the mode of digital standard ETSI TS 102 361 (DMR) in the VHF range in radio networks of land mobile communication, including in radio communication systems using digital masking of transmitted information, implemented in radios "KORSAR" with changeable keys in accordance with GOST R 34.12-2015, GOST R 34.13-2015.
The repeater can be used:
- to create a mobile digital radio communication network consisting of several similar repeaters forming a chain;
- for retransmission of radio signals between zone repeaters;
- to organise radio communication between trace repeaters in a dual-band repeater network.
Depending on the delivery set the repeater can be used as a stationary or portable.

Specifications

Maximum value of the operating radio frequency range 146...174

Maximum value of the operating temperature range 55 °C

Minimum value of the operating temperature range -25 °C

Number of channels 1024

Frequency grid step 25

Maximum power output 40 W

Protection class no

Antenna with installation kit and cable included no

Availability of power supply unit from 220 V mains, built-in Armoured glass

Built-in remote controller via Ethernet no

Communication modes Digital

Average MTBF 6500

Digital Standard DMR

Equipment Repeater, 220 V power supply cable, 12 V external power supply cable, RE, FO, individual packing

Overall dimensions 590 x 210 x 570 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
