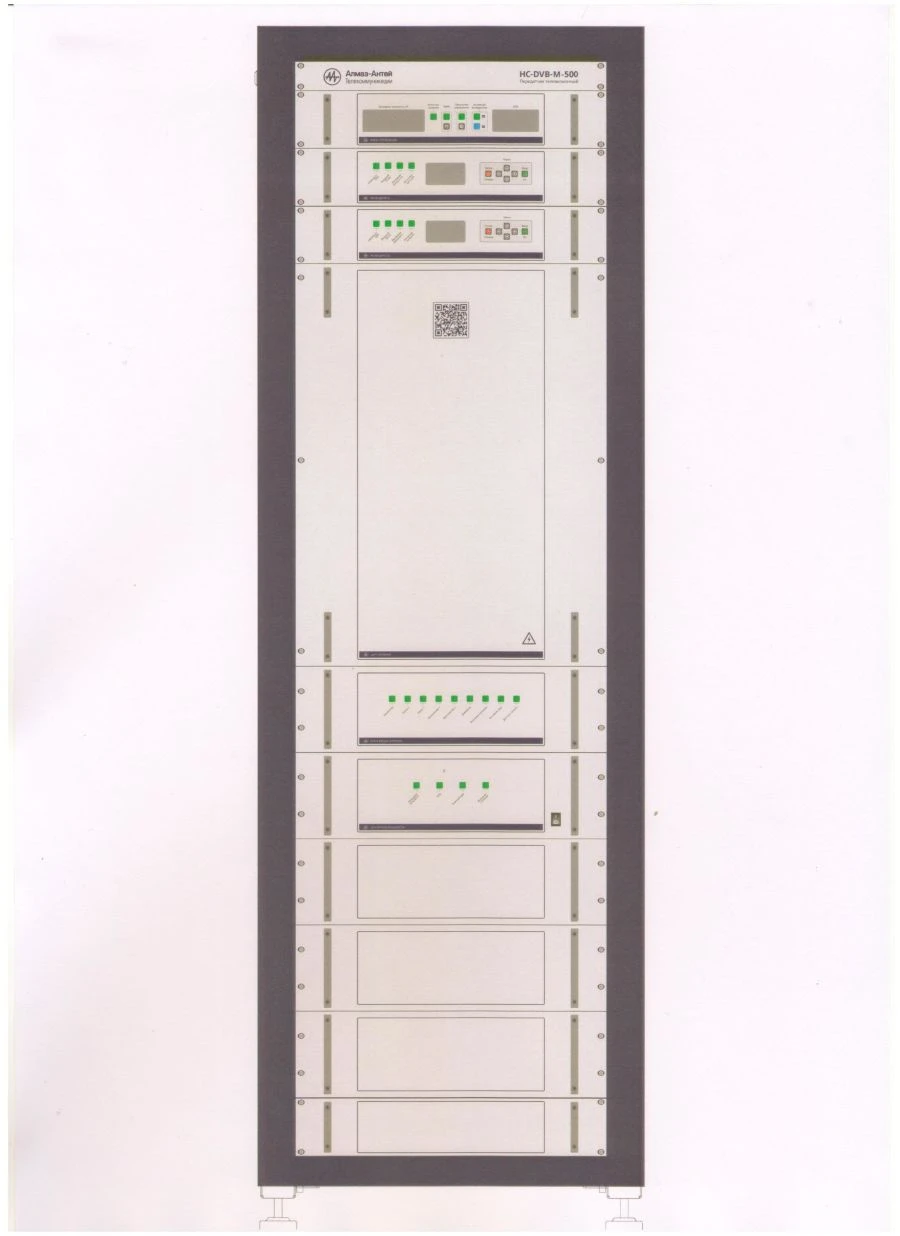

Digital television transmitter NS-DVB-500-M

The HC-DVB-M series digital television transmitters are designed for terrestrial television of DVB-T2 standard and fully comply with the requirements of the international standard EN302755VI.2.1 (DVB-T2). The transmitters are available with output power range from 500W to 10kW. All transmitters with output power from 0.5 to 10 kW are made with liquid cooling system. HC-DVB-M series transmitters have remote control and monitoring using SNMP protocol and WEB interface. Transmitters are made in standard racks and by their parameters correspond to the best world samples. The main feature of the line of DTV transmitters HC-DVB-M series, with power from 1 to 5 kW, use a broadband power amplifier, made according to the scheme of Daugherty, with liquid cooling. Transmitters are designed with the possibility of operation on two sub-bands: (21-48 TVK) and (49-60 TVK), which makes it possible, in the future, when adopting the plan
