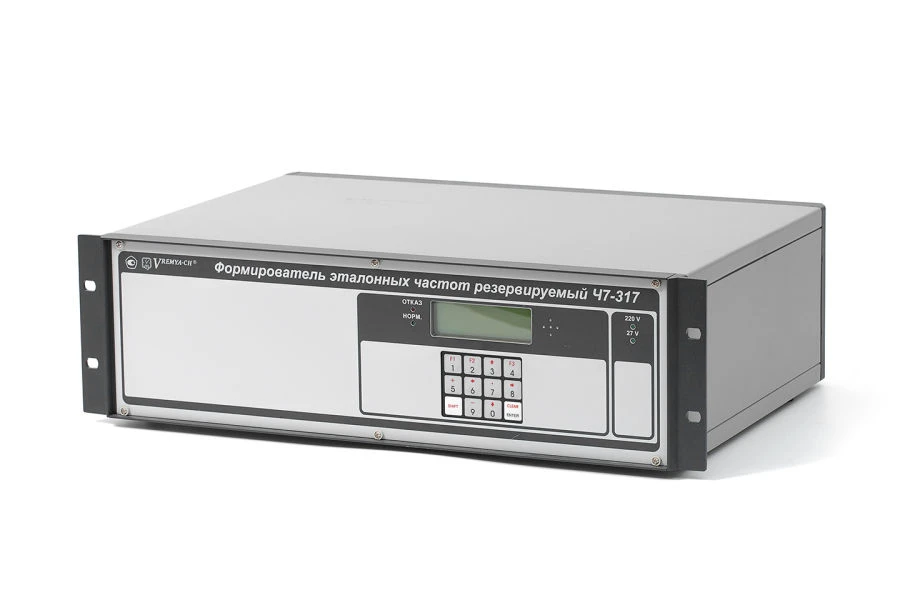

Reference frequency shaper redundant Ch7-317

Digital Frequency Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The redundant reference frequency shaper Ch7-317 is designed for the formation and reproduction of frequency and time signals protected from frequency and phase failures according to the results of signal processing from a group of frequency and time keepers.Main areas of application:- in metrology when working as part of group reference complexes for storing and reproducing the size of frequency and time units.Working with a synchronising group of signal sources (up to 4 pcs.) simultaneously. Formation of frequency and time output signal, which parameters are determined by the average value in the synchronising group and, if necessary, by introducing corrective values of frequency, phase and drift compensation. Saving of the generated frequency and time signals in case of signal loss at the inputs. Automatic exclusion of the signal source from the synchronising group in case of significant deviation of its frequency value from the nominal one.Control with the keyboard on the front panel or with the help of a personal computer.

Technical Specifications

Input sinusoidal signals with parameters: frequency	5
Input sinusoidal signals with parameters:frequency	10
Input sinusoidal signals with parameters: Frequency	100
Output sinusoidal signals with parameters: - frequency	5
Output sinusoidal signals with parameters: frequency	10
Output sinusoidal signals with parameters: Frequency	100
Output sinusoidal signals with parameters: RMS value of voltage (1,0+-0,1) V, on load	SBVVBG ohm
Input sinusoidal signals with parameters:RMS value of voltage (1.0+-0.2) V, on load	SBVVBG ohm
Operating temperature range	5...40 °C
Overall dimensions (W×H×H)	312 mm
Weight	8 kg
Power supply of the shaper is from 220 V AC network	SBVVBG
The power supply of the formulator is from the DC mains with voltage 22-30 V	SBVVBG
Power consumption	SBVVBG
Service life	B1/B8 2100/900 MHz

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
