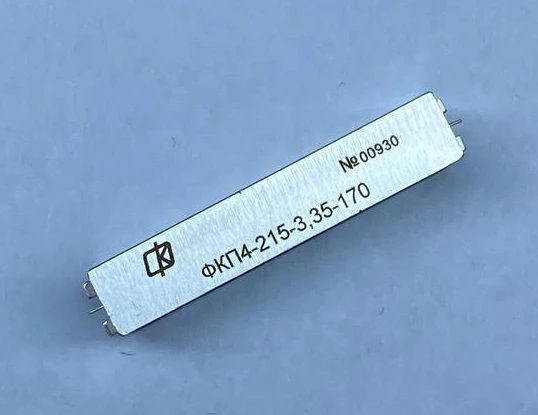

Radio Frequency Filter FKP4-215-3.35-170 for Optimal Signal Quality

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 5th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-size parameters of the product. The filter is designed for operation in the UHF range and provides a bandwidth of 170 MHz relative to the centre frequency of 3350 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3275 to 3430 MHz

1.4

Guaranteed attenuation (upper band 3630 to 3700 MHz)

Guaranteed attenuation (lower band 10 to 3040 MHz)

Maximum insertion attenuation at center frequency

1.4

30 dB level bandwidth

310...340

Bandwidth at 1 dB level

165...175

Center frequency

3349
