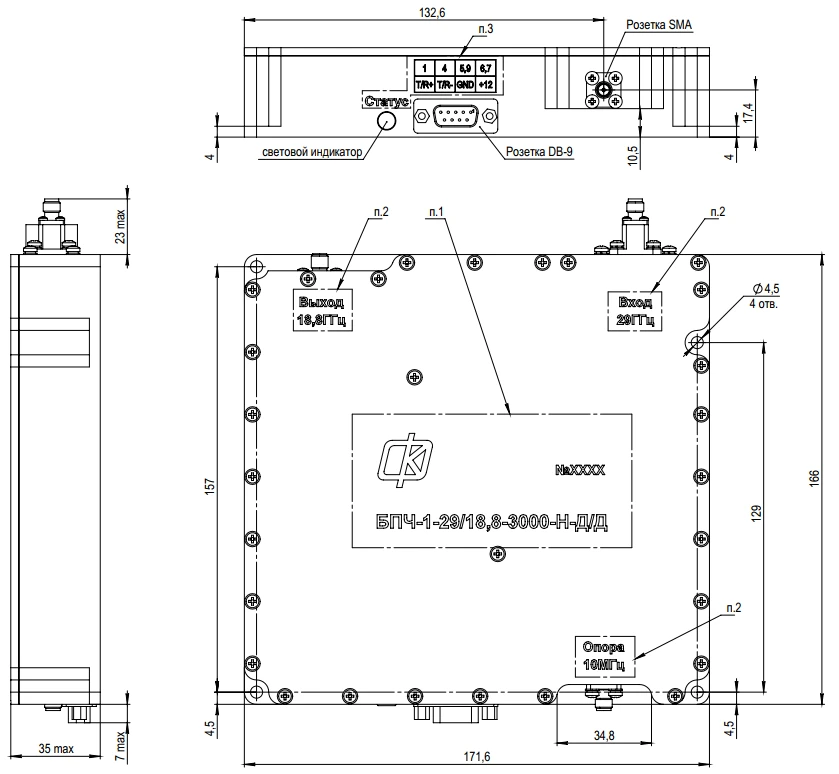

Frequency Transfer Block for Ka to K Band Signal Transfer - BPC-1-29/18.8-3000-N-D/D
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to transfer the frequency spectrum from Ka band to K band, with the ability to adjust the signal gain up to 60 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 3000 MHz.
Specifications
Input frequency range
27500...30500
Output frequency range
17300...20300
Transmission ratio adjustment range
-60...0
Frequency response irregularity (max.)
2
Noise figure (max.)
33
1dB compression point output power (at least)
0.001 W
Mirror channel suppression (dBn, not less)
60
Frequency of the external reference oscillator
10
Internal reference oscillator
Got it
Power supply voltage
12...24 V
Power consumption (max.)
13 W
Remote monitoring and control
Yes, via DB-9 connector using RS-485 standard.
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Weight (max.)
2000 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
