Radio frequency filter FKP4-214-3,35-160

Telecom Equipment Accessories

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

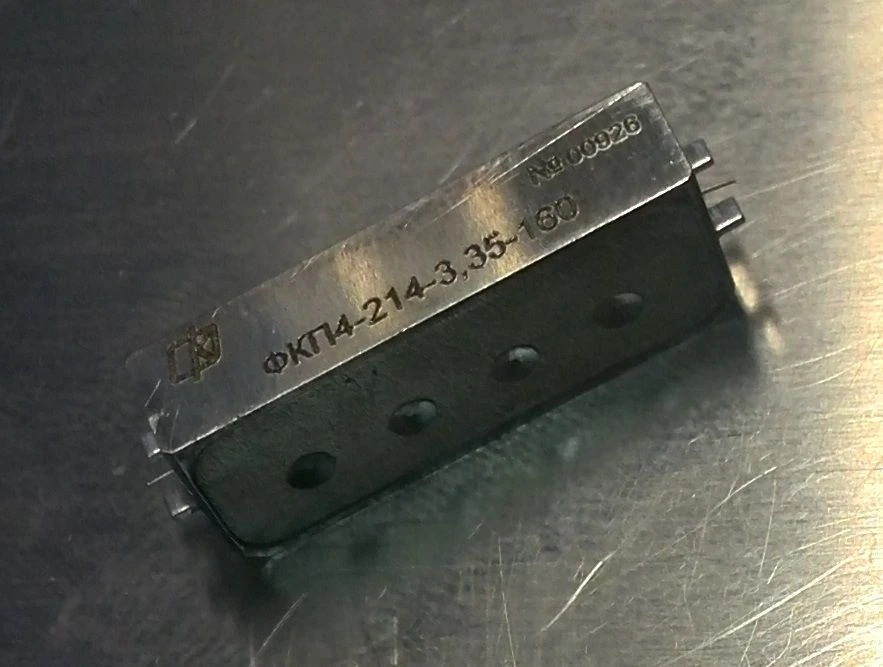

The band-pass filter of the 4th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the product. The product is designed for operation in the UHF range and provides a bandwidth of 160 MHz relative to the centre frequency of 3350 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3280 to 3415 MHz 1.4

Guaranteed attenuation (upper band 3700 to 4000 MHz) SBVVBG

Guaranteed attenuation (lower band 10 to 3050 MHz) 45

Maximum insertion attenuation at center frequency 1.2

30 dB level bandwidth 380...410

Bandwidth at 1 dB level 155...169

Center frequency 3349
