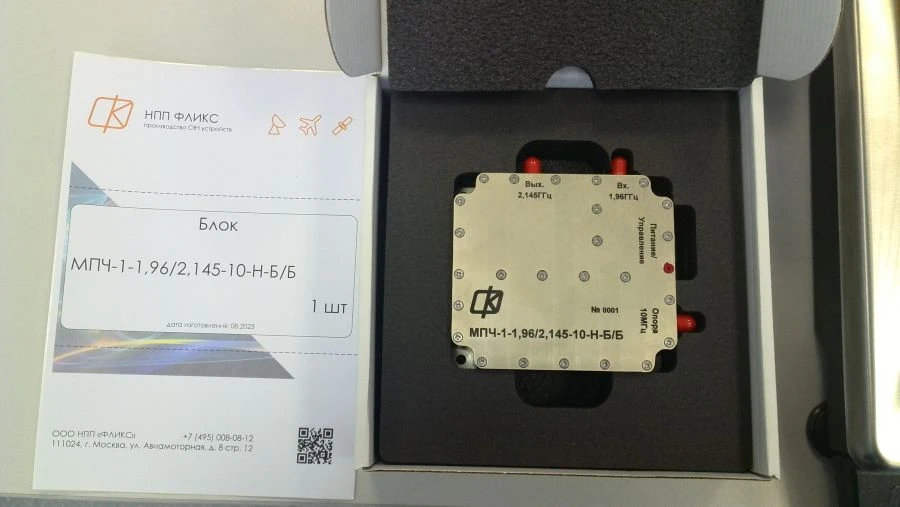

Frequency transfer module MHR-1-1,95/2,15-10-N-B/B

Telecom Equipment Accessories

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The device is designed to transfer the frequency spectrum from L band to S band, with the possibility of adjusting the signal gain up to 30 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 10 MHz.

Technical Specifications

Input frequency range	1955...1965
Output frequency range	2140...2150
Transmission coefficient (at least)	30
Transmission ratio adjustment range	0...30
Frequency response irregularity (max.)	1
Input VSWR (max.)	1.35
Output VSWR (max.)	1.35
Frequency of the external reference oscillator	10
Power supply voltage	5 V
Weight (max.)	410 g
List of controlled parameters	Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Remote monitoring and control	Yes, via DB-9 connector, RS-485 standard

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
