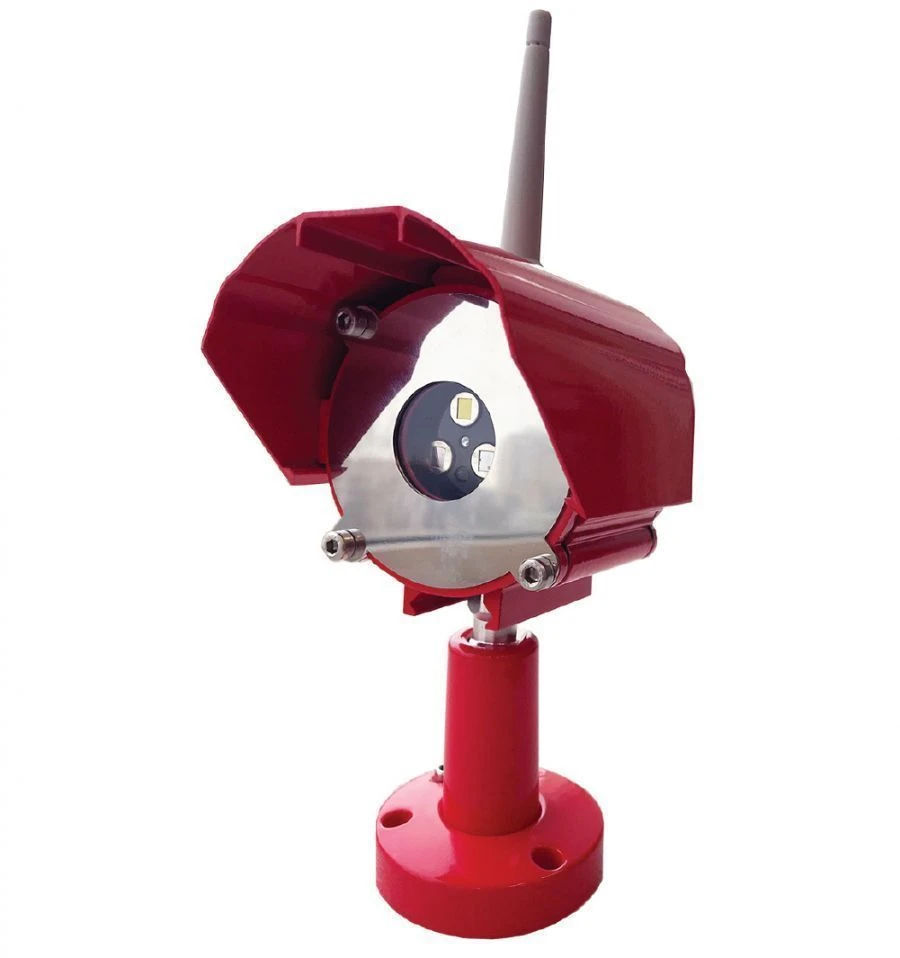

Radio-channel infrared flame detector IP330-1/2-1 Plamya-PRO

Fire detector flame infrared radio channel IP330-1/2-1 Plamya-PRO is designed for round-the-clock continuous operation in fire protection installations of buildings, structures, premises and equipment as part of an integrated security system "Strelets-Integral". The IP has two built-in sensors (4.0 µm IR reference channel and 4.4 µm IR measurement channel). The response time of the device to the checkpoint is not more than 30 s. 1.11 The power supply of the device is provided by two lithium batteries of CR123A type (or similar) with a nominal voltage of 3 V. The batteries are supplied already installed in the device. Typical operating time from the main and backup batteries: not less than 7 years. 1.14 The degree of protection of the shell (according to GOST 14254-2015) is IP65. Overall dimensions of the device (with bracket and antenna), mm - 215 x 100 x 75. IP mass, kg, not more than - 0,5.
