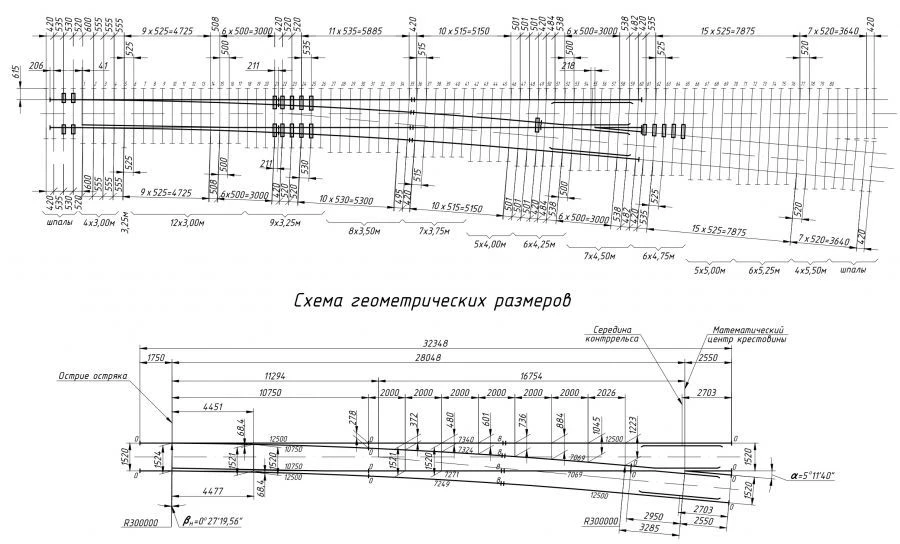

R65 Type Switch Mark 1/11 for Smooth Track Change Applications

The R65 type track switch of 1/11 grade on wooden bars is designed for transferring rolling stock from one track to another. The crossing is interchangeable with the switch of the project 2193. Flexible sharps are used in the switch.

The crossing is prefabricated with improved mating of cast and rail parts. The counter rail is not connected with the track rail. The shackles and frame rails are HFI hardened.

The crossing is made on pads with high flanges. The R65 type 1/11 grade 1/11 type R65 type switches, project 2771.00.000-02/03, are manufactured in the following versions: 2771.00.000-02 - right; 2771.00.000-03 - left.
