R65 Type Switch for Railway Tracks 1524 mm - Model 1/9

Available for Import

R65 Type Railway Switch for Mining Industries - Model 1/9

Wide Gauge Track Switches

Manufacturer: NSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

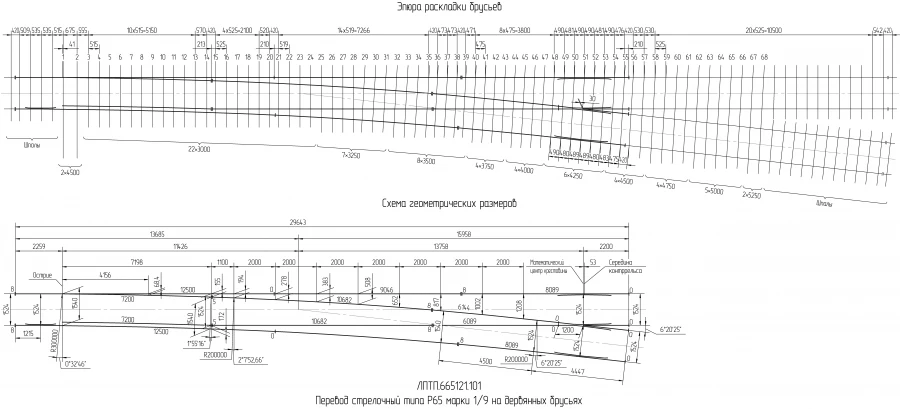

1524 mm gauge 1/9 P65 type 1/9 gauge 1524 mm railway crossing for mining and processing plants of the project LPTP.665.121.101 Switching of arrow type P65 of 1/9 gauge 1524 mm for mining and processing plants of project LPTP.665.121.101-02

Description

Designed for operation on railway tracks of industrial enterprises of mining and processing plants. Design features: switches: rotary shackle; Fastening of single pads SK65 to the bars - screw; adjustable pull; liner and overlay fastening of root riveted pads with cushions; crossbars: solid cast from high manganese steel with rail ends of front and rear outreach, counter rail from angle SP850

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Ordinary

Arrow design

With rotating sharps

Cross brand

1/9

Rail type

?65

View in the direction of a side or crossing track

Left

Cross type by construction

Solid

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

wooden

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
