R65 Type Switch for 1524 mm Gauge, Model NLPPTP.665.121.103-01 Available for Import

R65 Type Switch for 1524 mm Gauge - Ideal for Coal Mine Access Roads

Wide Gauge Track Switches
Manufacturer: NSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

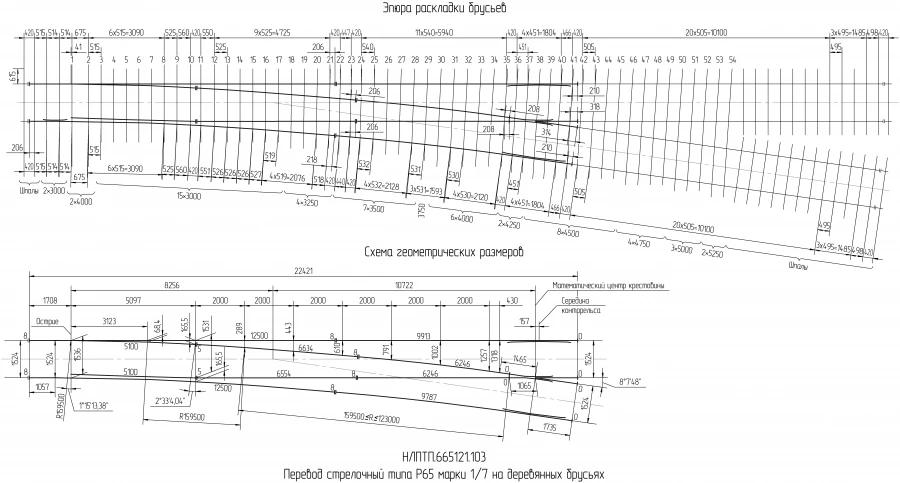

Switch-over of arrow type P65 of 1/7 gauge 1524 mm of the project NLPTP.665.121.103

Description

Designed for operation on access roads of coal mines, mines. Design features: translations: separate fastening; PC terminals; pads with high flanges; arrows: rotary shackle; liner-overlay fastening of the root; adjustable pull; crossbars: one-piece cast from high manganese steel with liner endings of front and rear outreach; counter rail from SP850 angle

Specifications

Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/7
Rail type
?65
View in the direction of a side or crossing track
Left
Cross type by construction
Solid
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
wooden
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
