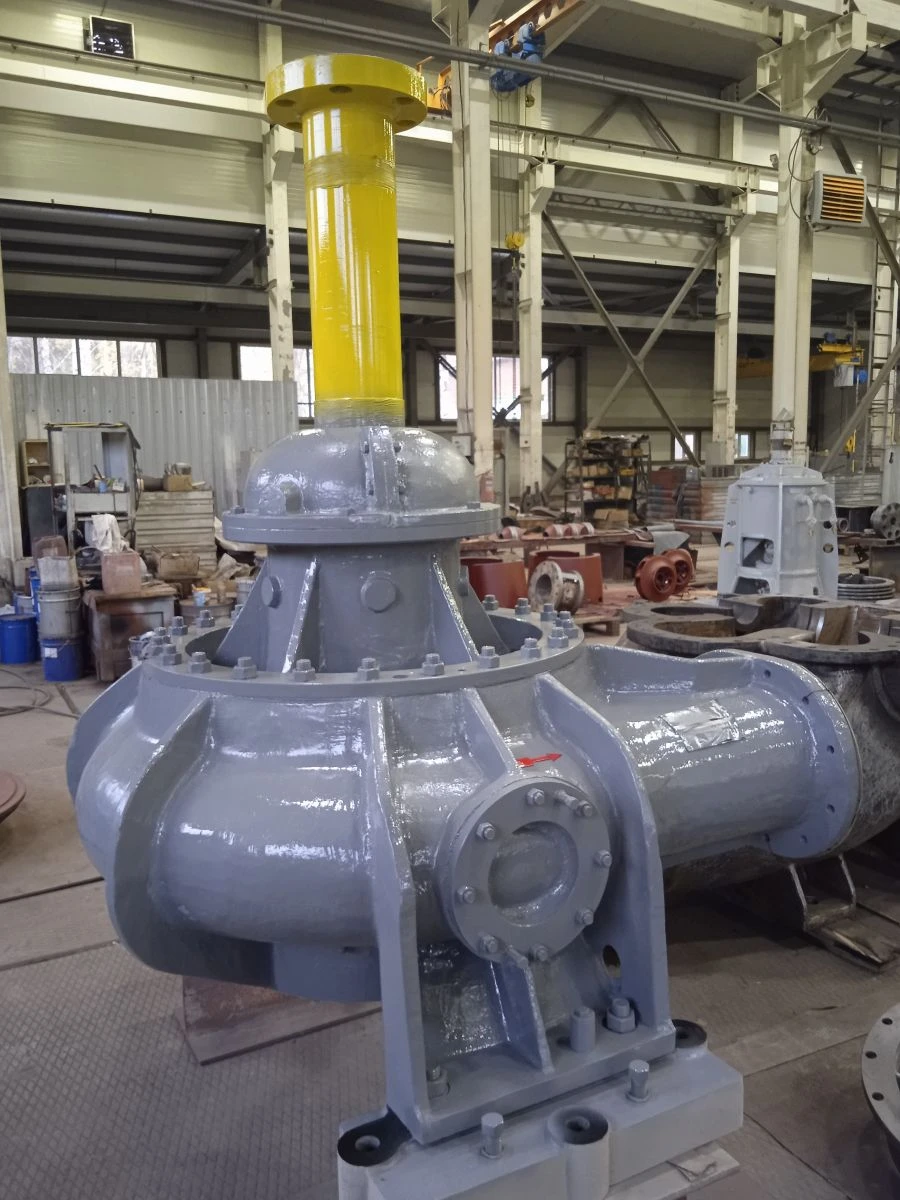

Pump unit electric pump unit type SDV

The pump is centrifugal, vertical, single-stage with a single-entry impeller mounted on a cantilevered part of the shaft. Shaft seal is rubber face seal or stuffing box seal with soft packing. The connection between pump shaft, spacer shaft and electric motor is rigid flanged. The axial force is absorbed by the heel of the electric motor. The direction of rotation of the pump rotor is anti-clockwise when viewed from the electric motor side. The rotor is supported by a guide bearing with rubber liners.
Designation of the pump type SDV:
C - for sewage liquids;
D - dynamic;
B - vertical.
