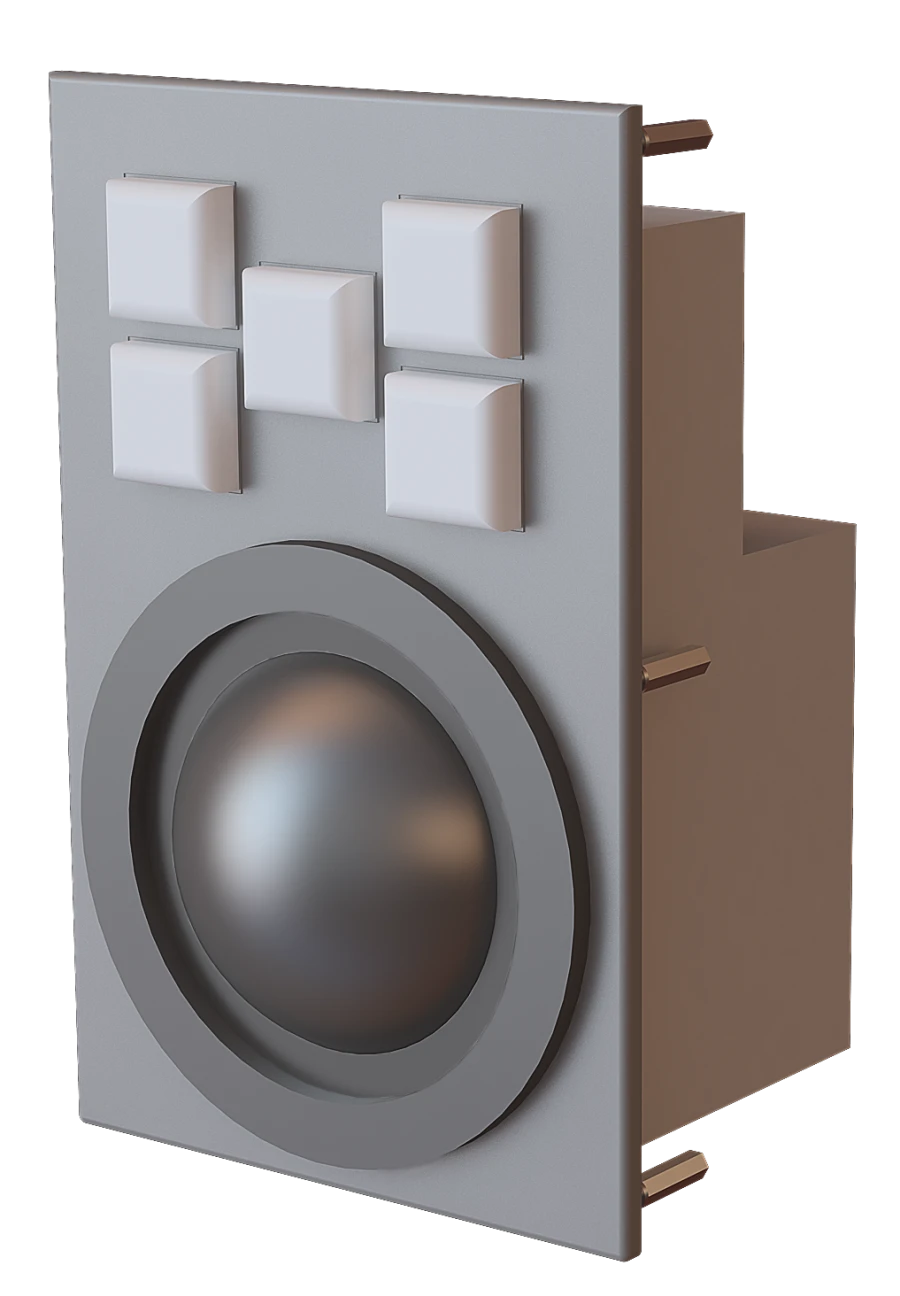

PS/2 and RS232 Controlled Ball Manipulator SHM-2.06 for Precision Tasks

Main features: Interface-PS/2; RS232 (optional); Ball diameter, mm-50.8; Colour of the front panel (+ on request); Number of control channels with galvanic isolation-1 (optional).

Resistance to external influencing factors Ambient air temperature: operating -10 ºC; +55 ºC, storage -40 º?; +70 º?; Vibration, Hz- 1-60 with acceleration 2g Ambient air pressure, MPa: increase by 0.203, decrease to 0.08; Single shock with duration of action of shock acceleration 0,5-2 ms-120g; Degree of protection -IP45/IP21.
