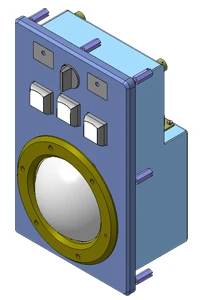

Ball Manipulator SHM-3 for High-Precision Control in Various Applications

Main features Interface -PS/2; RS232 (optional) Ball diameter, mm-76 Front panel colour (+ on request) Number of control channels with galvanic isolation-2 (optional) Automatic switching to the working channel (+)

Resistance to external influencing factors Ambient air temperature: operating -10 ºC; +55 ºC, storage -40 º?; +70 º?; Vibration, Hz - 1-60 with acceleration 2g Ambient air pressure, MPa: 0.203 increase, decrease to 0.08; Single shock with duration of action of shock acceleration 0,5-2 ms-120 g Degree of protection -IP45/IP21
