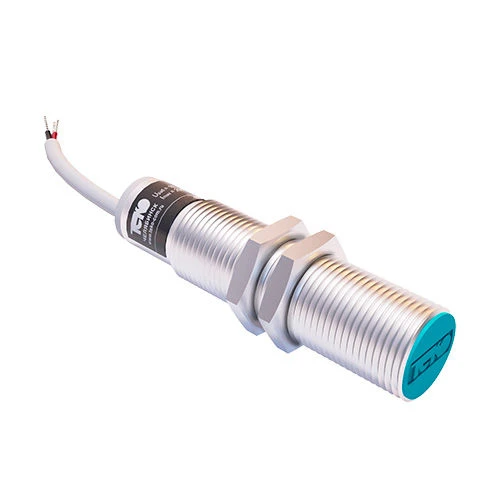

Proximity switch ISBt A2A8-31P-4-LZ-C-VP1

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The inductive proximity switch (sensor) ISBt A2A8-31P-4-LZ-C-VP1 is designed for use in road transport. The switch is designed to meet the requirements of GOST 28751-90 "Electrical equipment of motor vehicles. Electromagnetic compatibility. Conductive interference in power supply circuits. Requirements and test methods". The sensor ISBt A2A8-31P-4-LZ-C-VP1 can be operated in conditions of increased vibration. Operating principle: When approaching to the sensitive surface of the sensor of the object of impact from any metal, the electromagnetic field is damped and the amplitude of oscillations of the generator is reduced, the threshold device (trigger) is activated and the electronic key of the sensor is switched, which performs switching of electrical circuits.

Technical Specifications

Wiring diagram	3-wire
Special purpose	Road transport version
With special electrical parameters	Increased noise immunity
Working clearance	0...3.2 mm
Operating temperature range	-45...60 °C
Operating current range, Irab.	Less than or equal to 250 mA
Degree of protection according to GOST 14254-96	IP68
Comprehensive protection	Got it
Light indication	Got it
Connection / Connection	Cable 3x0,34mm , Length 2m*
Switching frequency, Fmax	900
Contact type / Output structure	PNP Closing
Voltage drop at Imax, Ud	Less than or equal to 2.5 V
Operating voltage range, Urab.	10...30 V
Case	8...12 mm
Length in mm	61 mm
Diameter of threaded body	M12
Housing material	D16T
Connection method	Cable
Nominal sensing distance	4 mm
Mounting type	Built-in
Enclosure size, DxWxDl	M12x1x61

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
