Durable Protective Thermal Jacket for Cameras - WSS SVS21-24V-pa

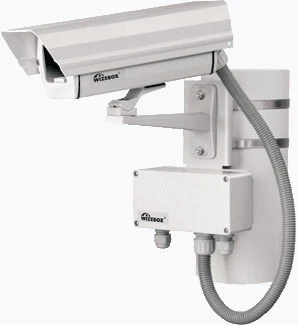

Protective Thermal Jacket for Cameras - WSS SVS21-24V-pa for Cold Climate Applications

Manufacturer:SAROVINTECH LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Protects the camera with fixed or variable lens from unfavourable environmental influences in cold climates.Type of thermo-shroud: STREET SET. Series: STREET SET STANDARD. The diameter of cables for connecting the thermal housing is 6-10 mm.

Weight of the complete thermal housing 1.7 kg.Maximum load on the bracket 25 kg with a reserve factor of 2.6. Powder coating, polyester paint, colour: light grey (RAL7035).Material of the thermocover housing: extrusion aluminium; die-cast aluminium.Material of the terminal box housing: polycarbonate.Glass: special polished, without optical distortion.Fasteners: stainless steel.Material of sealing gaskets of the thermocover: Armlen.Material of sealing gaskets of the terminal box: neoprene.Material of cable glands: polyamide.

Specifications

Maximum power consumed by the thermal enclosure
29 W
Input voltage supplied to the enclosure
24 V
Dimensions of usable volume
160x65x50mm
Housing material
Extruded aluminum
Environmental protection class
IP66
Operating temperature range
-30...40 °C
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
