DP1203 Radio Modules for Effective Production Localization and Quality Control

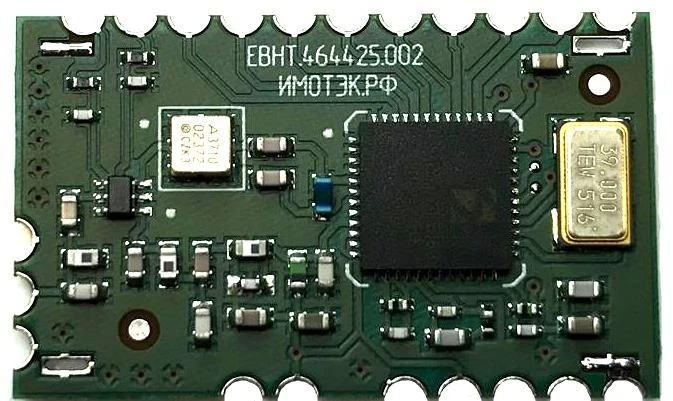

DP1203-C433/868/915IMT is a proprietary development of the company "IMOTEK" designed to localise production and quality control in Russia one of the world's most common series of radio modules DP1203, operating in the frequency range ISM (industrial, scientific and medical applications) 433, 868 and 915 MHz. The basis of this module is the XE1203 transceiver from SEMTECH, which allows to achieve high transmitter output power, exceptional receiver sensitivity, low power consumption, high data rate and small device size. DP1203IMT modules are suitable for wireless data transmission systems that utilise remote communication. The DP1203IMT modules are capable of transmitting data over distances of several hundred metres, taking into account the signal attenuation in the room. All components of the radio modules are mounted on one side, which simplifies their installation on the user's PCB. To connect...
