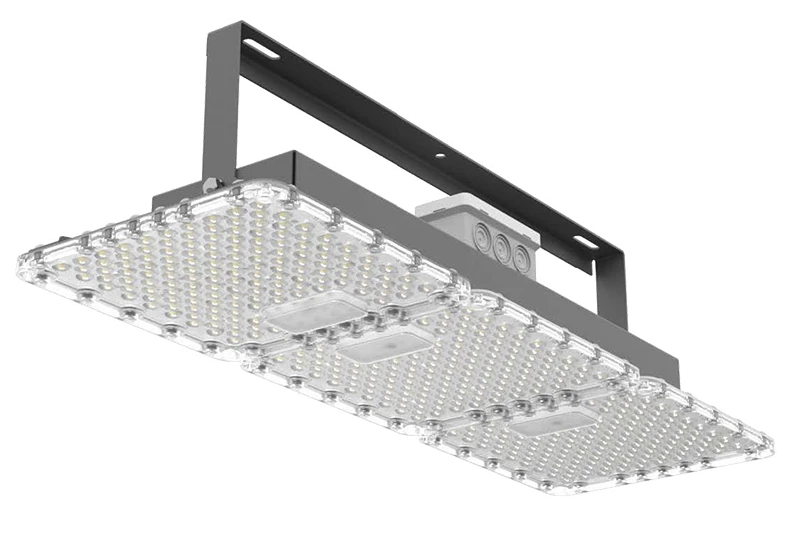

PROM Series LED Lighting Fixture 30-1000W for Industrial Lighting

LED Ceiling & Wall Lights

Manufacturer: DIOLIGHT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Series PROM - LED luminaires of modular type for lighting industrial facilities.In the development of a series of luminaires was applied technology of heat dissipation which allowed to raise the efficiency of lighting devices as a whole (taking into account all possible losses) up to 160 lm/W. The luminaires are designed for mounting on walls or lighting trusses. The luminaires have a degree of Dust and Water protection IP67.

The luminaires are equipped with a bracket with discrete adjustment of the angle of inclination of the luminaire, in some models there is an adjustment of the angle of inclination of each light section of the luminaire, which allows you to optimally target the luminaire. To create the necessary light environment the luminaires can be equipped with secondary optics 7/14/30/60/90/S1/S2. Application: Industrial areas, Car parks, Railway aprons, Warehouse terminals, Shops, Premises with ceiling height more than 10 m.

Specifications

Type of lamps (LED, incandescent, fluorescent)

ice

Type of supply current

Degree of protection (IP)

65-67

Power factor

0.95

Upper operating temperature value

SBVVBG °C

IK code

Light distribution class

Brightness limitation category

restricted

Color temperature (K)

2700...5700 K

Weight

2...10 kg

Optical element material

Polycarbonate

Climatic execution (according to GOST 15150-69)

UHL1

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011)

65-67

Color rendering index (CRI)

70...90

Mounting type

Wall-mounted

Housing material

Aluminum

Luminous flux, lm

5000...160000 lm

Power consumption, W

30...1000 W

Ripple factor, less than or equal to

1 %

Color rendering index (Ra), greater than or equal to

70-90

Correl. color. temp. (CPT)

2700...5700 K

Power consumption

30...1000 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
