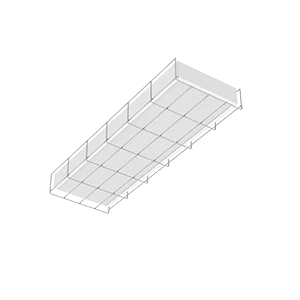

VARTON S170 2.0 LED Sports Lighting for Educational Institutions

LED Ceiling & Wall Lights

Manufacturer: VARTON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

S170 2.0 series LED luminaires are an energy efficient lighting solution for school buildings and gymnasiums.

Specifications

Power

16 W

Type of luminaire

Wall and ceiling

Luminous flux

1680 lm

Protection class against electric current

Correlated color temperature, max

4000 K

Power factor

0.95

Possibility to equip with a connector for tool-less connection of a control system module (Nema / Zhaga or other)

Armoured glass

Available with IK08 code

Armoured glass

Available with translucent elements made of PMMA, polycarbonate and silicate glass

Armoured glass

Light quality requirements for TV broadcasting and photo and video shooting can be met

Armoured glass

Possibility of climatic design UHL2, UHL4

Armoured glass

Available with nominal supply voltage 12, 24, 36, 110, 230, 380 V AC/DC

Armoured glass

Possibility to design with arbitrary power

Yes. Programmable in 1W increments up to 160W

Expandable correlated color temperature range

Yes. Versions with correlated color temperatures below 2700 K and above 5000 K are available

Available with color rendering index from 70 to 95 Ra (CRI)

Armoured glass

Available with IP 54, 65, 66, 67, 68

Armoured glass

Available without control or with PWM control, 0-10 V, 1-10 V, DALI, PLS, DMX

Armoured glass

Possibility of version with protective silicate glass

Armoured glass

Possibility of version with protection class II, III against electric shock

Armoured glass

Possibility of version with lower operating temperatures down to -20C

Armoured glass

Possibility of version with upper operating temperatures up to +70C

Armoured glass

Lower operating temperature value

1 °C

Upper operating temperature value

40 °C

Housing material

Steel

Type by installation location

Built-in / surface-mounted

Width

212 mm

Length

600 mm

Height

70 mm

Climatic version

UHL4

Pulsation factor

1 %

Degree of protection (IP)

IP40

Power consumption

16 W

Rated supply voltage

230 V

Input voltage

230 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
