Programmable logic controller CilkX

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Controllers programmable logic CilkX, are designed to measure electrical signals from primary converters of flow, pressure, temperature and other converters with unified current and digital outputs, transform them and calculate the values of physical quantities. Controllers also perform signal reception and processing, calculation and formation of output signals for automated real-time control of technological processes and objects.
Controllers can be used in oil, gas and petrochemical industries, as well as in other industrial areas to create automated measurement and control systems of various configurations.

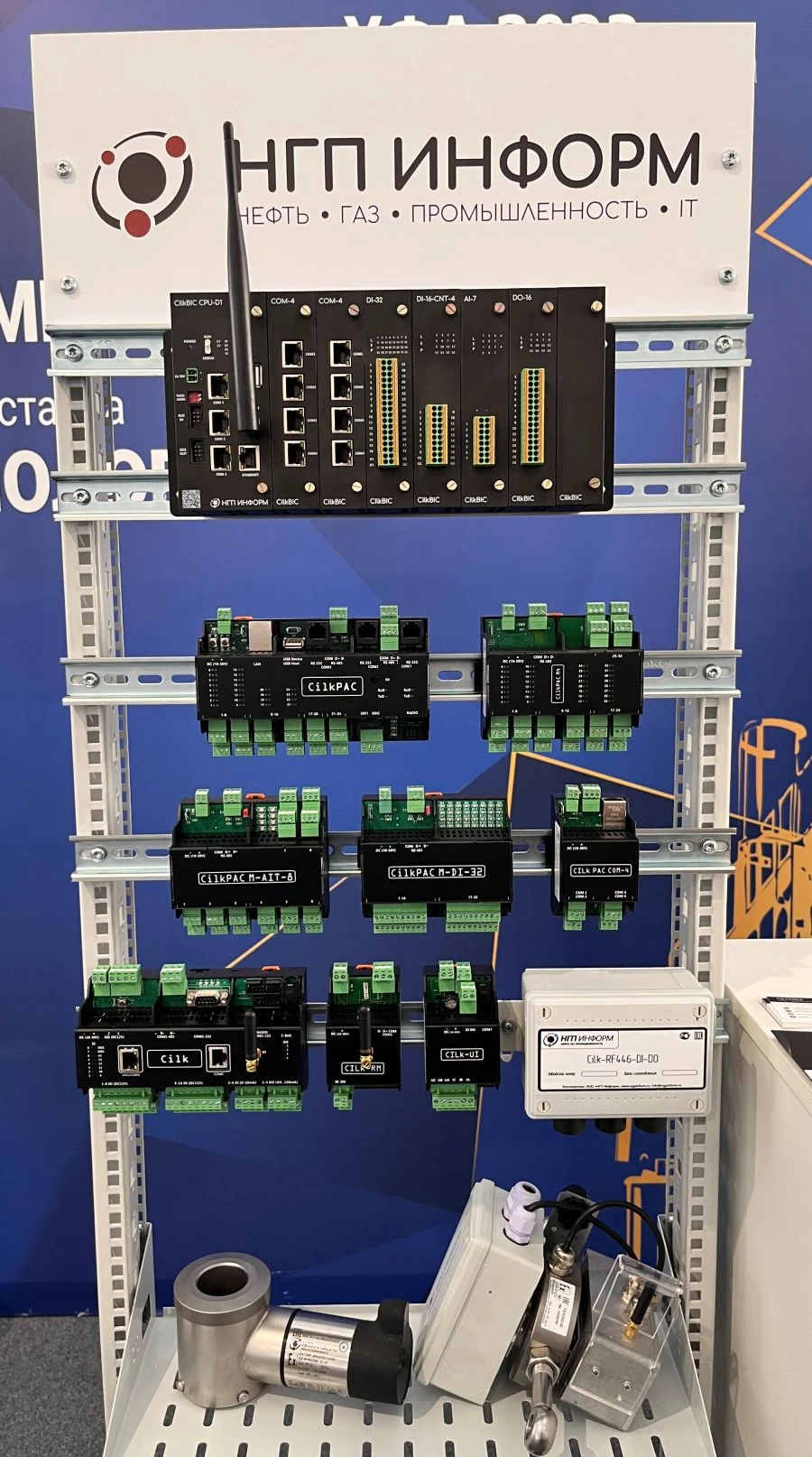

Depending on the form factor and design, the following versions are available: Cilk, Cilk-RM, Cilk-UI, Cilk-RF4-DI-DO, Cilk-DNM, CilkPAC, CilkBIC.

Specifications

Power supply voltage 10...30 V

Interface type RS-232/485, Ethernet, USB, Wi-Fi, Bluetooth, HDMI

Availability of a memory card slot absent

Number of channels 32 pc

Switching voltage range 220 V

Maximum switched current 0.2 A

Number of Ethernet ports 1 pc

Number of interfaces RS-485/422/232 3 pc

Measured frequency range 0...5000

Software platform Beremiz, ArmaPLK

Structure modular

Communication speed with I/O modules 3000

Composition According to equipment specification

Hardware platform в зависимости от модификации контроллера согласно ТУ и КД

Type Programmable logic controller

Model CilkX

Type of input signals 0(4)...20 mA, binary signal of "Dry contact" type, counting-pulse ones

Minimum program cycle, ms 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
