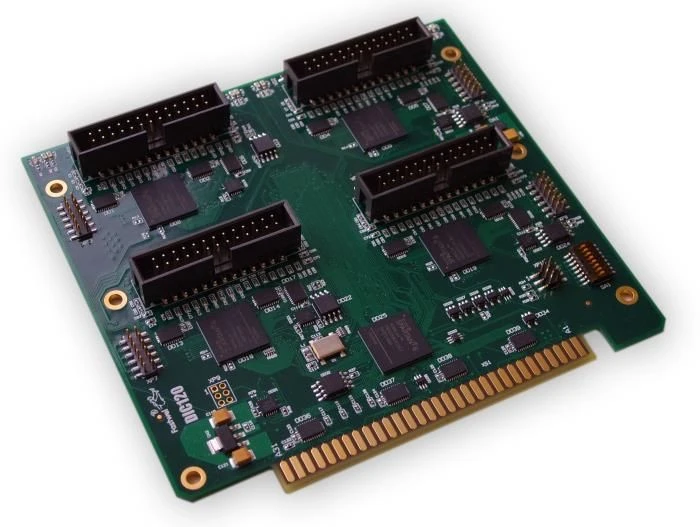

Programmable I/O Module DIC120 for Expanding System Resources and Signal Processing

The module is designed in MicroPC standard and is intended for input/output of 96 or 48 signals with CMOS (CMOS), TTL (TTL) logic levels or expansion of system resources (e.g., support of additional system timers or acceleration of logical and arithmetic operations). The module can also be used to measure signal frequency (duration) and phases, perform counting and timing operations, generate PWM signals, convert codes, generate control timing diagrams and hardware interrupts based on input events. The module is hardware and software compatible with DIC110 and DIC111 discrete I/O modules made in MicroPC standard and represents four (for DIC120-01, DIC120-03 versions) FPGA matrices with the possibility of on-chip programming (ISP) having 24 discrete input/output channels each.
