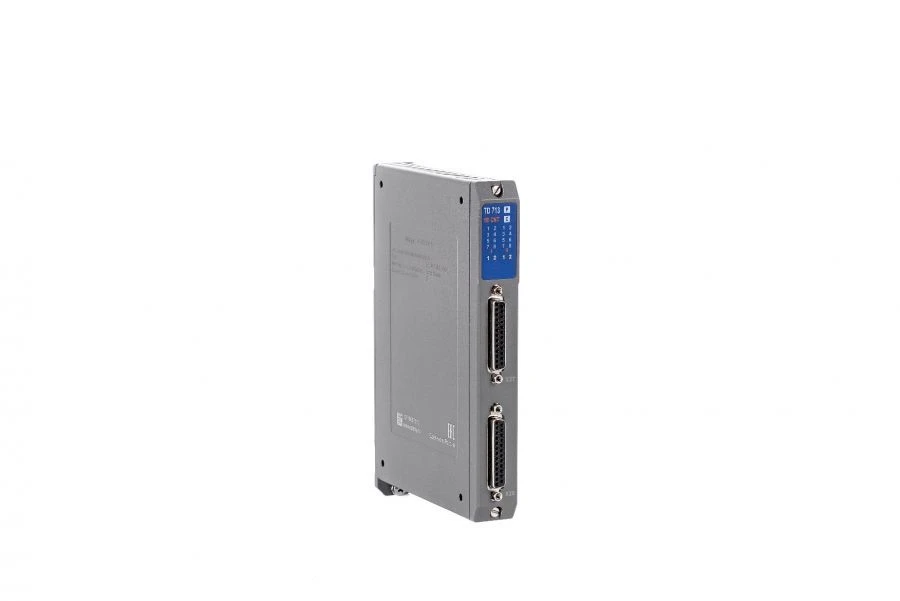

Programmable ELSI-TMK controller. Module TD 713 8I CNT

The ELSI-TMK controller is an industrial controller. It is designed for use in control panels of technological objects as part of telemechanics, automation, fire extinguishing and similar systems as a programmable logic controller. Its peculiarity is the use of the whole set of input-output modules (including measurement modules) as well as one or several interface modules in the configuration. The modules of counting inputs are designed for counting impulses coming from sensors. The modules support the following operating modes:
1)Measurement of pulse repetition rate for each channel;
2) Measurement of the number of pulses for a given period;
3) Measurement of pulse repetition period;
4)Accumulative counting of pulses with saving the accumulated value in non-volatile memory.
