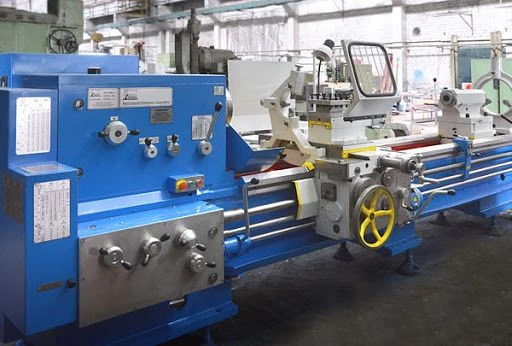

Precision Lathe Machine 16K40 for Turning Operations

Available for Import

Precision Lathe Machine 16K40 for Efficient Turning Operations

Manual Metal Lathes

Manufacturer: RyazanStankoStroy LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

16?40 turning centre lathe

Description

Model 16K40 turning and screw-cutting machine produced by LLC "RYAZANSKY STANKOSTROITEL" (Ryazan, Russia) is designed for turning parts with straight, stepped profiles, as well as for threading. High rigidity, hardened guides and gears guarantee long-lasting accuracy and allows to fully use the capabilities of high-speed and carbide tools when machining both ferrous and non-ferrous metals. The direct coolant supply to the tool allows machining at high cutting conditions. The machine is equipped with a 4-position toolholder with vertical axis of rotation and manual change of tool positions. The accuracy class of the machine is P according to GOST 8-82. Type of climatic execution UHL4 according to GOST 15150-69.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting (universal) machines

Flanged spindle end according to DIN

11?

Main motion drive power

18.5 kW

Transverse, m/min

Speed of rapid slide movements, longitudinal m/min

5,2

Cutter slides, mm/rev

0,013-2,064

Transverse, mm/rev

0,013-2,064

Feed rates: longitudinal, mm/rev

0,033-5,6

Spindle speed limits, rpm

10-1250

Spindle bore diameter

105 mm

The largest diameter of the workpiece: mounted above the bed:

840 mm

Machined above the bed

800 mm

Machined above the slide

490 mm

Thread cutting steps: metric threads

1...224 mm

Inches, threads/inch

28-0,25

Modular, modular

0,25-56

Pitch, pitch dia

112-0,5

Number of spindle speed steps

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
