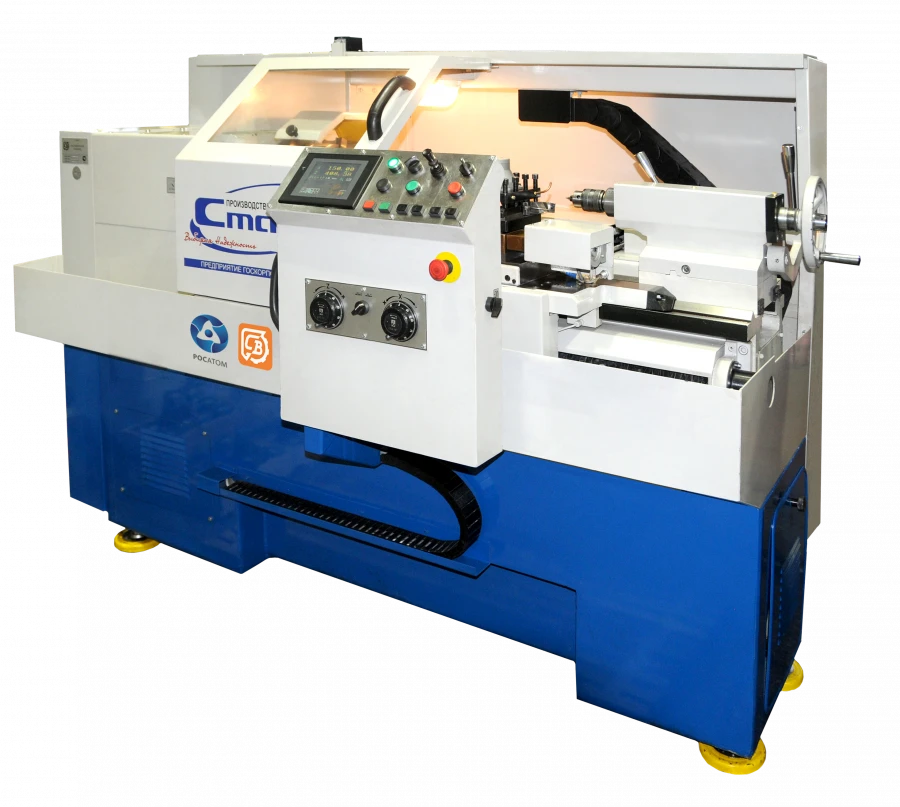

Available for ImportHigh-Performance Universal CNC Lathe SAMAT 400 SC "VECTOR" for Efficient Machining
Manufacturer:Middle Volga Machine-Building Plant LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
High productivity - possibility of processing in automatic mode;
Easy operation - quick training of operators;
Intuitive interface;
Wide range of micro-cycles - longitudinal turning, boring, all types of threads, cone, sphere, etc..;
Wide range of tooling options;
Optimisation of cutting modes by means of stepless spindle speed control;
Simple operation similar to that of a conventional universal lathe;
No special programming skills required;
Teach mode reduces the time required for programme preparation.
Easy operation - quick training of operators;
Intuitive interface;
Wide range of micro-cycles - longitudinal turning, boring, all types of threads, cone, sphere, etc..;
Wide range of tooling options;
Optimisation of cutting modes by means of stepless spindle speed control;
Simple operation similar to that of a conventional universal lathe;
No special programming skills required;
Teach mode reduces the time required for programme preparation.
Specifications
Type of product according to PP RF 616
Lathes
Length
1975...2530 mm
Width
1190 mm
Height
1470 mm
Thread pitch limits
0.1...56 mm
Number of spindle speeds
steplessly
Main motion motor power
5 kW
Tapered bore of the tailstock quill
Morse 5
Tapered bore in spindle
Morse 6
Height of tool in toolholder
25 mm
Spindle bore diameter
45 mm
Length range of the product to be installed
500...1000 mm
Largest diameter of the product to be installed above the bed
400 mm
Largest diameter of the workpiece to be installed above the slide
220 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
