Available for Import

PRANA Prognostics and Remote Monitoring System Software-Hardware Complex for Effective Automation

Communication Monitoring Systems

Manufacturer: UCSB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The hardware-software complex (PAC) of the system of prognostics and remote monitoring (SP&RM) "PRANA" is a technical means with the help of which the connection of AC "PRANA" to the ACS of the monitoring object and implementation of the functions of AC "PRANA" is organised. The product includes technical means of SPiUM PRANA protection system to ensure protection of information transmitted via open data transmission channels.PAK SPiUM PRANA is designed for installation in server or switchboard rooms, in places convenient for maintenance and operational switching.PAK SPiUM PRANA is a serial production product, the main assembly is carried out at the manufacturing company, the final adjustment to the characteristics of the object - at the place of operation.Depending on the characteristics of the object, where the installation will be carried out.

Specifications

Main parameters and characteristics

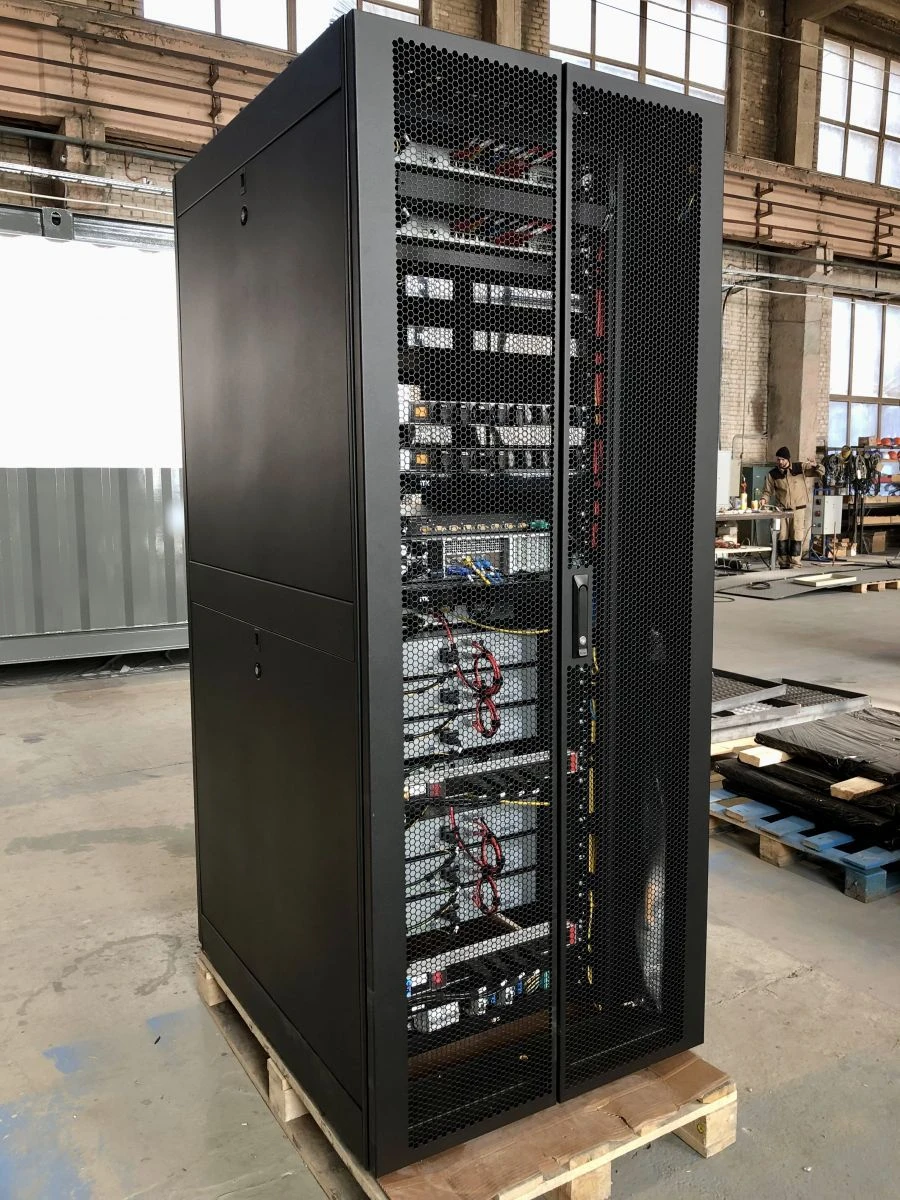

PAK SPiUM "PRANA" is made in the format of a standard server cabinet with perforated front and rear doors. Cable entry/exit is provided through the upper and lower universal cable glands. A DIN rail is mounted on the rear side of the enclosure with a DIN-r

Main elements

В состав основных элементов должны входить: 1. Комплект шкафа напольного; 2. Комплект серверного оборудования; 3. Комплект оборудования средств защиты информации. Рабочее положение в пространстве – вертикальное с допустимым отклонением от него в любую стор

Floor cabinet set

The set shall include: cabinet 42U 800x1050; horizontal copper 19" grounding rail; vertical cable organisers; 19" equipment shelves; 1U blanking panels; horizontal 1U cable organisers; 19" DIN-rail panel.

Server hardware set

The set shall include: DEPO Storm server; Eltex MES2324P switches; Seagate Backup Plus Slim 1 TB external HDD disc; ATEN server console; C3 2U 2000VA/1800W UPS.

Information protection equipment set

The set shall include: sensor for connection UserGate Log Analyzer up to 50 users (cluster, 2 nodes) with FSTEC certificate; sensor for connection UserGate Management Center up to 50 users (cluster, 2 nodes) with FSTEC certificate; licence

Additional elements

The composition of additional elements should include materials to ensure: installation of equipment in the cabinet; switching of equipment inside the cabinet; labelling of equipment and switching; connection of the set of equipment PAK SPiUM "PRANA" to ex

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
