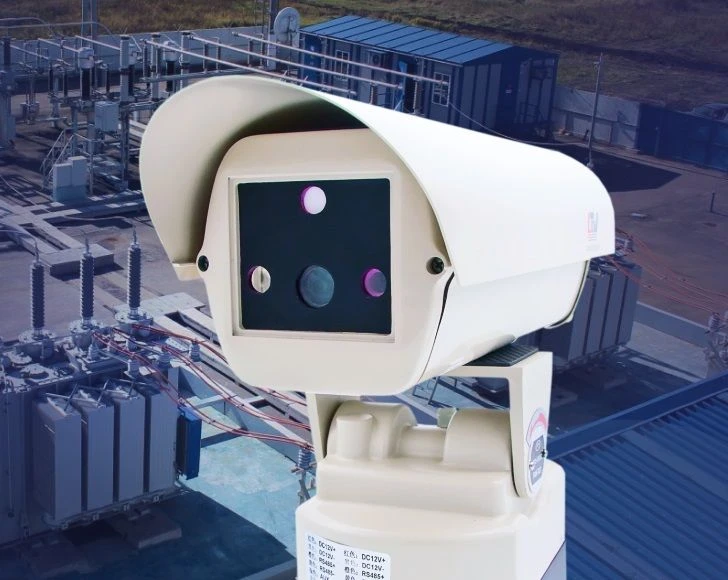

Stationary Diagnostic Module (SDM) for Temperature Monitoring and Control

The module is designed for stationary diagnostics and temperature monitoring of uninsulated current-carrying elements and corona discharge detection in open switchgears and transformer substations. Diagnostics is carried out by means of continuous automatic remote monitoring of the object state.The module carries out fixation of overheating of the controlled object, as well as fixation of corona discharges, by means of video, infrared, ultraviolet and sound channels of the module.The module carries out continuous monitoring of the object state and remote transmission of the collected data on the state of the controlled object to the data collection server via GSM (GPRS) wireless network. Remote operator monitoring of the controlled parameters collected by the server, as well as control of the module, is performed using a web-interface and data acquisition server in the data centre (DPC) of the customer.
