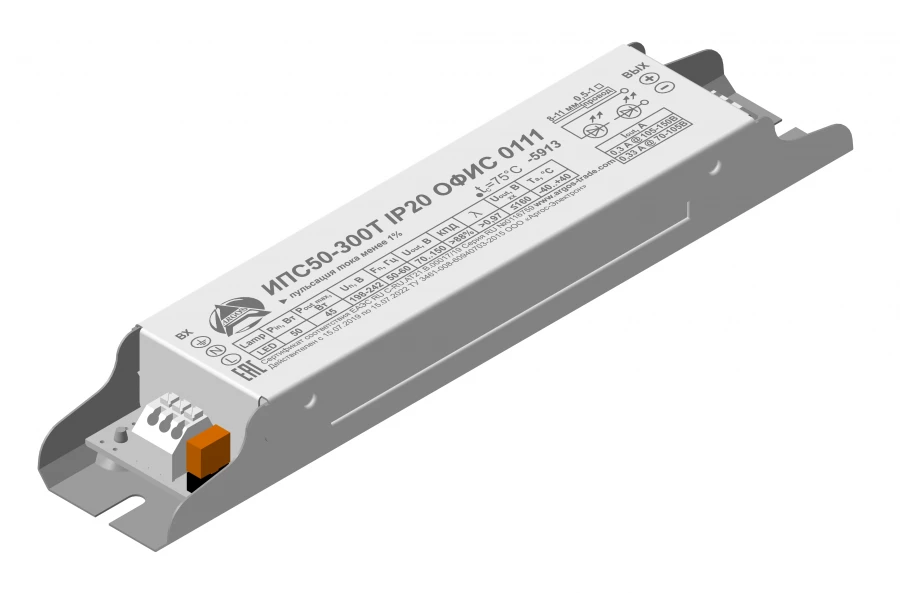

Power supply source IPS50-300T IP20 OFFICE 0111

Power Supply Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Power supply for LED, intended for the production of luminaires for indoor lighting

Specifications

Country of manufacture Russia

Rated output current 0.3 A

Rated output voltage range 105...150 V

Output current ripple ? 1% %

Rated output power 45 W

AC supply voltage range 198...253 V

EFFICIENCY, %, ? 88 %

XX Recovering

KZ Yes, on (10 sec)

Resistance to high energy microsecond pulses 1 kV (L-N), 2 kV (L-PE, N-PE)

Degree of protection IP20

EMC 9 kHz - 30 MHz Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Ambient temperature -40...40 °C

Galvanic insulation Got it

Insulation resistance input-to-output > 200 megohms; input-to-ground > 200 megohms; output-to-ground > 200 megohms

IPS dimensions, L*W*H 202*40*28 mm

Estimated MTBF at Ta=25°C 100000

Warranty 5 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
