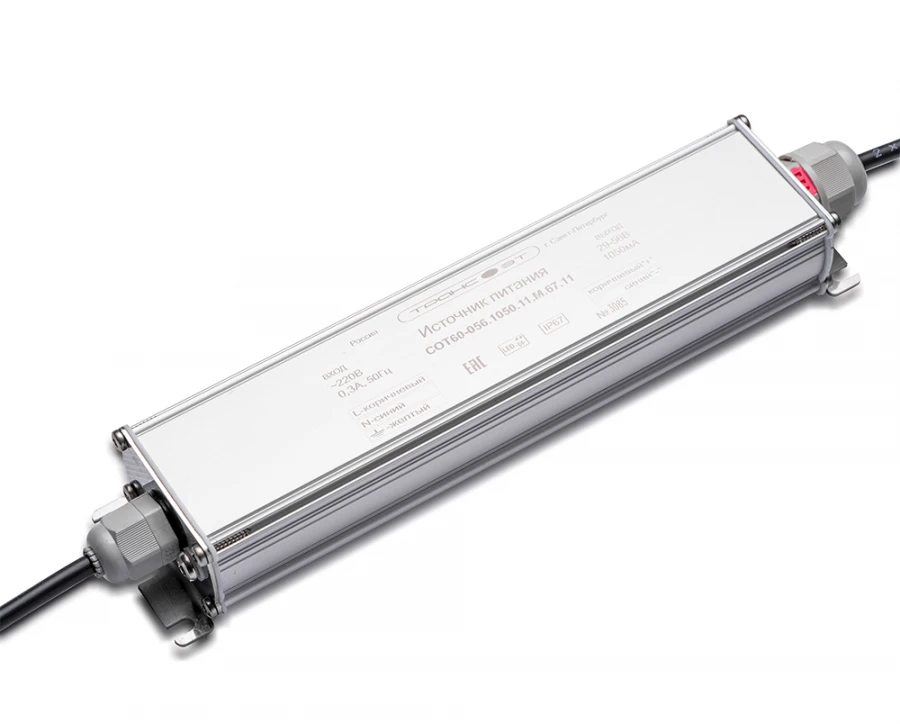

Power supply of LED matrix SOT60-056.1050.11.M.67.11

Power Supply Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for supplying stabilised current to LED matrixes

Technical Specifications

AC input voltage limit range	90...270 V
Maximum allowable AC input voltage	Weff 400.
Input voltage frequency	48-60
Current consumption	0.3 A
efficiency, at least	Flat grinder, Specialised grinder %
Output current	mA 1050±5%
Temperature deviation of output current value in the operating temperature range, not more than	2 %
Operating range of output voltage	29...56 V
Maximum load power	58.8 W
Warranty	5 years
Country of manufacture	Russia
AC input voltage operating range	Weff 176-264.
Galvanic isolation input - output	Got it
Electrical insulation strength (input-output), effective value	Weff 1500.
Provides light ripple factor, not more than	1 %
Protection when AC input voltage 380 Veff is applied	Got it
Protection against output voltage overshoot	Got it
Temperature protection	Got it
Temperature protection threshold	55±5 °C
Weight, max.	0.26 kg
Dimensions of the source (DxWxH) mm	215 x 46,4 x 32
Degree of protection of the shell	IP 67
EMC 9 kHz - 30 MHz	Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
